Vehicle Compatibility
No specific vehicle brands mentioned
Product Details and Technical Data

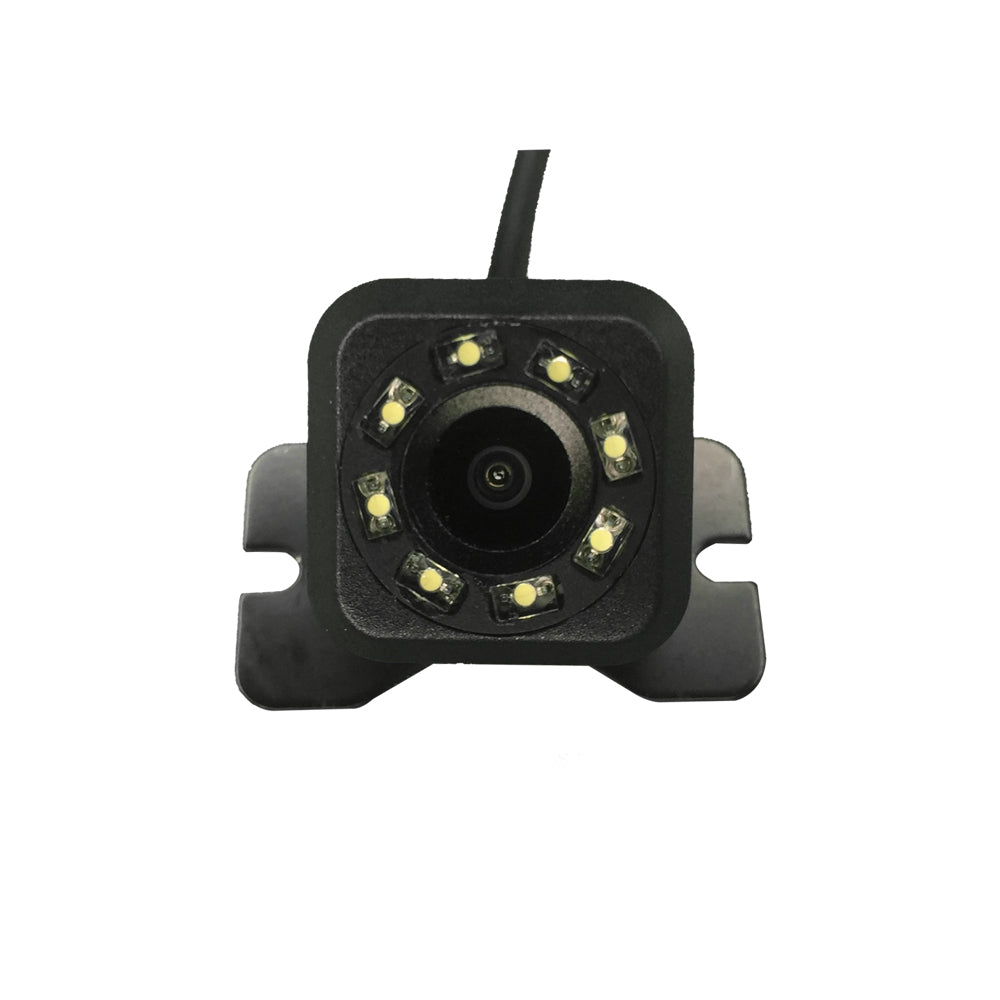

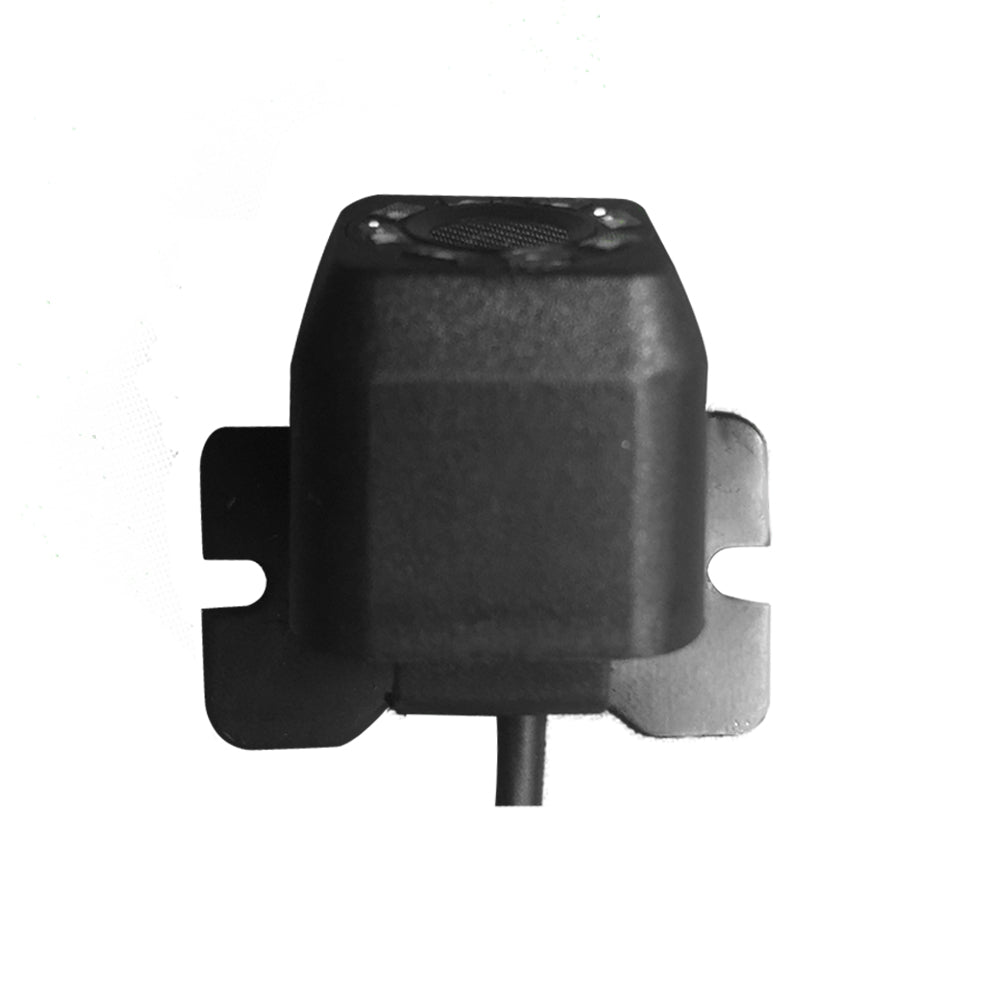

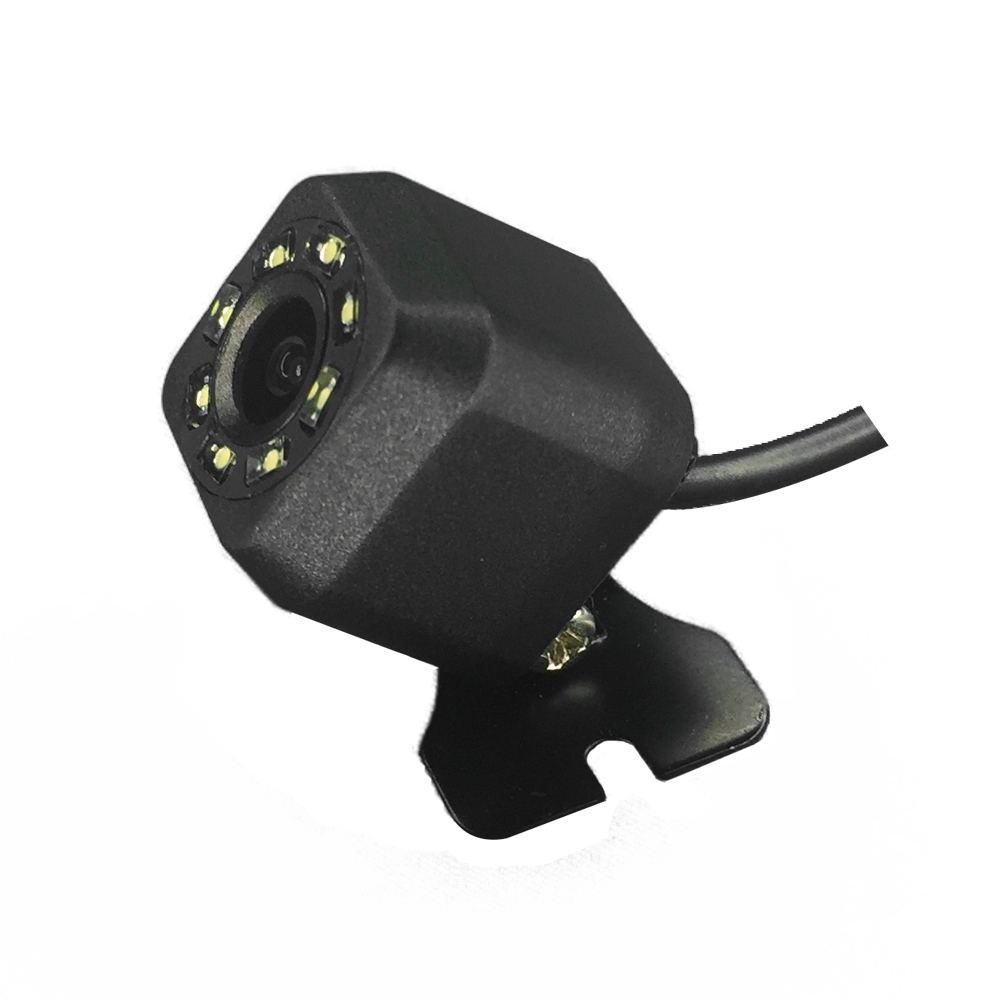

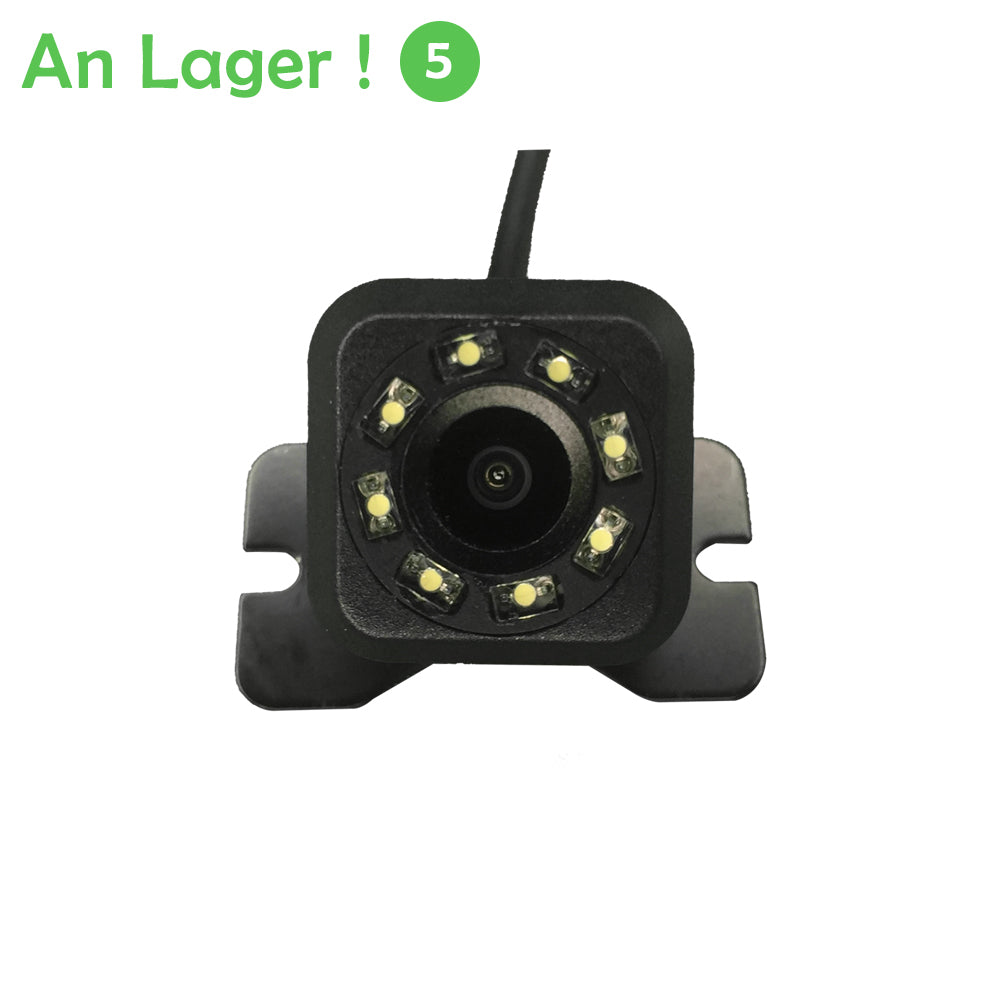

- 170° high-resolution car reverse camera with night vision for a wide range of cars, trucks, motorhomes, etc.
- Description
- 1. Anti-fog glass
- 2. CMOS image sensor
- 3. Supports NTSC video system
- 4. Embedded mounting in the rear bumper
- 5. Snap-in design, easy to install
- 6. High sensitivity and low power consumption
- 7. High definition and 170° wide viewing angle
- 8. Waterproof, shockproof and interference-free functions
- 9. Suitable for a wide variety of vehicles: cars, trucks, motorhomes, etc.
- 10. It helps to avoid incidents and wear and tear well
- 11. Extra low illumination of 0.5 lux for clear night vision
- 12. The simple and modest design and small size do not attract attention
- 13. With this camera you can get a complete overview of the rear of your car while driving
- 14. Low illumination – it can work at night and in other dark environments within 3 meters
- 15. To protect your car from collisions with invisible obstacles, choose a high-resolution camera of good quality like ours
- 16. Perfect solution to avoid a poor rear view of your car, boat, trailer, motorhome, truck or any vehicle without rear view mirror or poor rear view
- 17. Connect any monitor type with a yellow RCA composite socket for crystal clear resolution; it fits most vehicle keyholes. No further installation required
- Specification
- Lens: 2.0 cm
- Color: Black
- TV system: NTSC
- S/N ratio: > 48 dB
- Net weight: 134 g
- Waterproof: IP66
- Power supply: DC 12V ± 10%
- White balance: Auto
- Synchronization system: Internal
- Video cable length: 6.0 m
- Video output: 1.0 Vpp, 75 Ohm
- Viewing angle: 120–170 degrees
- Camera cable length: 56 cm
- Scan system: 2:1 Interlace
- Power cable length: 41 cm
- Image reversal: Left-right mirror
- Water resistance: IP66
- Horizontal resolution: 420 TV lines
- Camera size: 3.5 (W) x 2.5 (H) x 3.2 (D) cm
- Effective pixels: NTSC: 510 (H) * 492 (V)
- Power consumption: max. 300 mA
- Image sensor: CMOS 1/4" MT9V125 or PC1030, color
- Minimum illumination: 0.2 lux / F1.8 (0 lux with LED)
- Storage temperature: –30 °C to +60 °C, max. 95% RH
- Operating temperature: –20 °C to +60 °C, max. 95% RH
- Electronic shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
- Installation
- 1. Mount the camera in the keyhole of your vehicle
- 2. Adjust the camera lens to the best position
- 3. Connect the power cable to the 12V DC power supply of your vehicle
- 4. Connect the video output (yellow) of the camera to the display of your vehicle

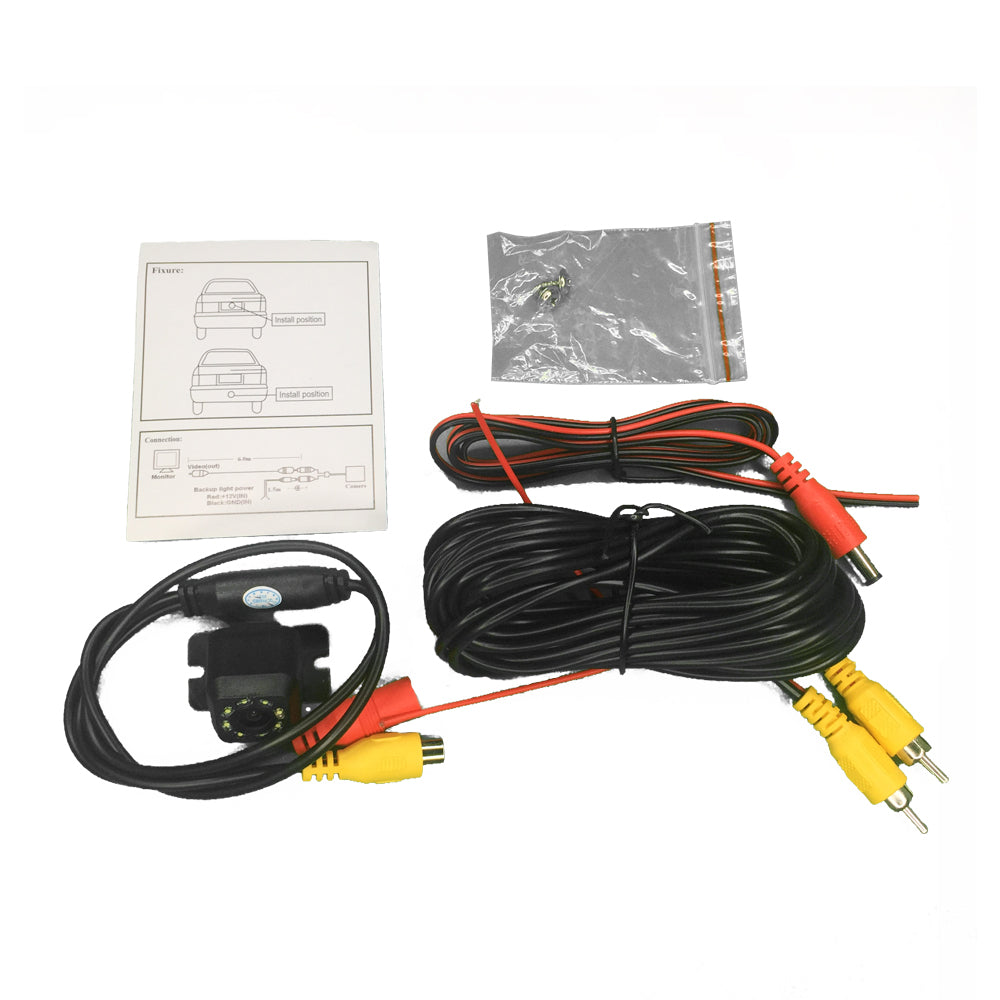

- Package Contents
- 1 x Video cable
- 1 x Power cable
- 1 x Instruction manual
- 1 x Reverse camera
- 2 x Screws (for bracket)
