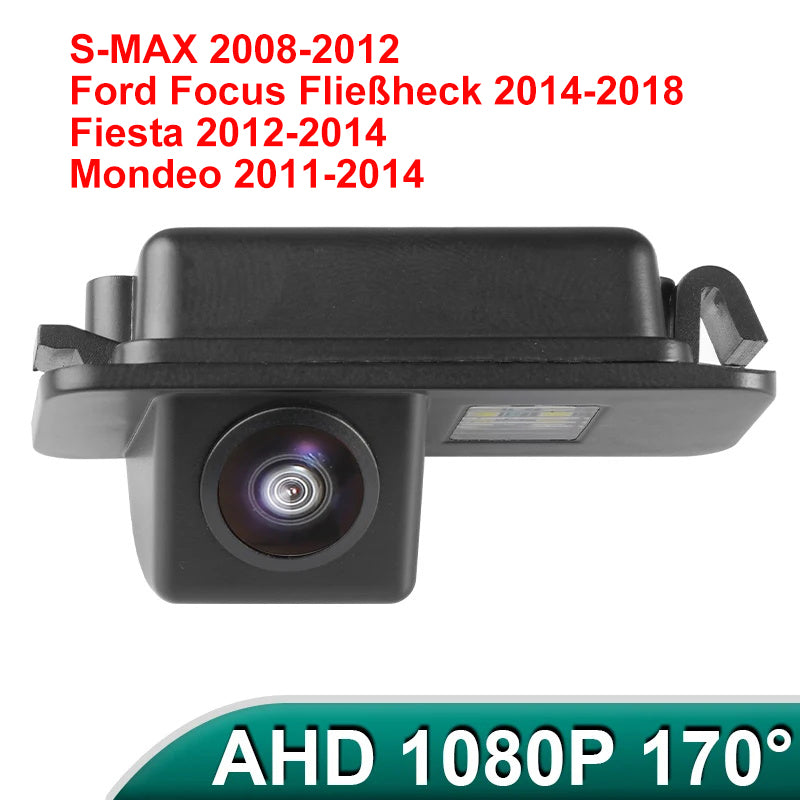

AHD 1080p reversing camera for Ford Focus Hatchback 2014-2018, Fiesta 2012-2014, Mondeo 2011-2014, S-MAX 2008-2012

Vehicle Compatibility

Vehicle brand: Ford

Vehicle model: Focus Hatchback; Fiesta; Mondeo; S-MAX

Year of manufacture: 2008; 2009; 2010; 2011; 2012; 2013; 2014; 2015; 2016; 2017; 2018

According to description: Focus Hatchback 2014-2018, Fiesta 2012-2014, Mondeo 2011-2014, S-MAX 2008-2012.

Product details and technical specifications

• 170° 1080p HD AHD night vision reversing camera for Ford Focus Hatchback Fiesta Mondeo S-MAX 2008-2014
• For
• S-MAX 2008-2012
• Ford Focus Hatchback 2014-2018
• Fiesta 2012-2014
• Mondeo 2011-2014
• AHD technology produces a high-resolution video signal. It uses advanced Y/C signal separation and filter technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• Highly integrated 2053 HD chip, maximum HD 1080p resolution. 170° 6-glass fisheye lens. Zero-delay front-end data is not encoded or compressed but sent directly to the backend for full real-time and high fidelity.
• The camera supports both AHD and CVBS video signals. It can work with both AHD Android monitors and all CVBS TFT monitors.
• Chip: HD Sony/OV2053HD
• Viewing angle: 155° to 175° visible range
• Effective pixels: CVBS: 1280x720p (NTSC/30 Hz); AHD: 1920x1080p (PAL/25 Hz)
• Signal format: NTSC or PAL
• Image resolution: 92w/200w pixels
• Video output: AHD video signal or CVBS video signal
• Night vision: Starlight night vision. The visible distance is greater than 10 meters.
• Night vision image: automatic gain control, auto white balance, automatic backlight compensation.
• Lens: 14/16 mm fisheye 6-glass lens
• Waterproof: IP68/IP69
• Operating power supply: DC 12V–24V, 2A
• Operating temperature: –30°C to +70°C
• Maximum power: 3W
• Tips

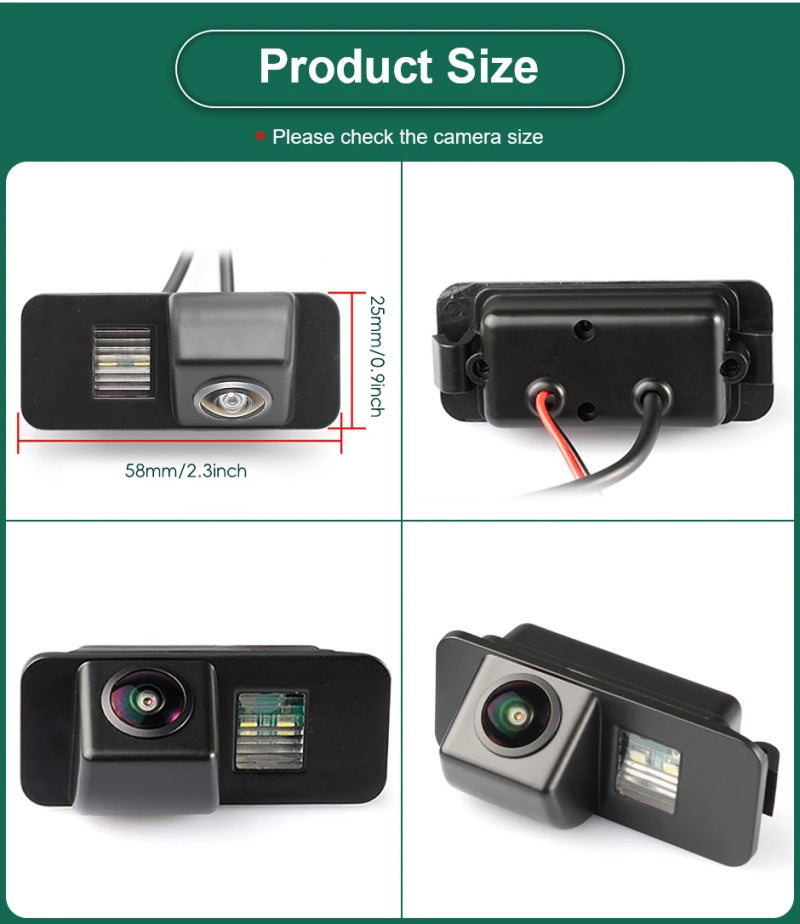

• 1. As there may be slight differences between cars produced in different countries, please check the size before purchasing.

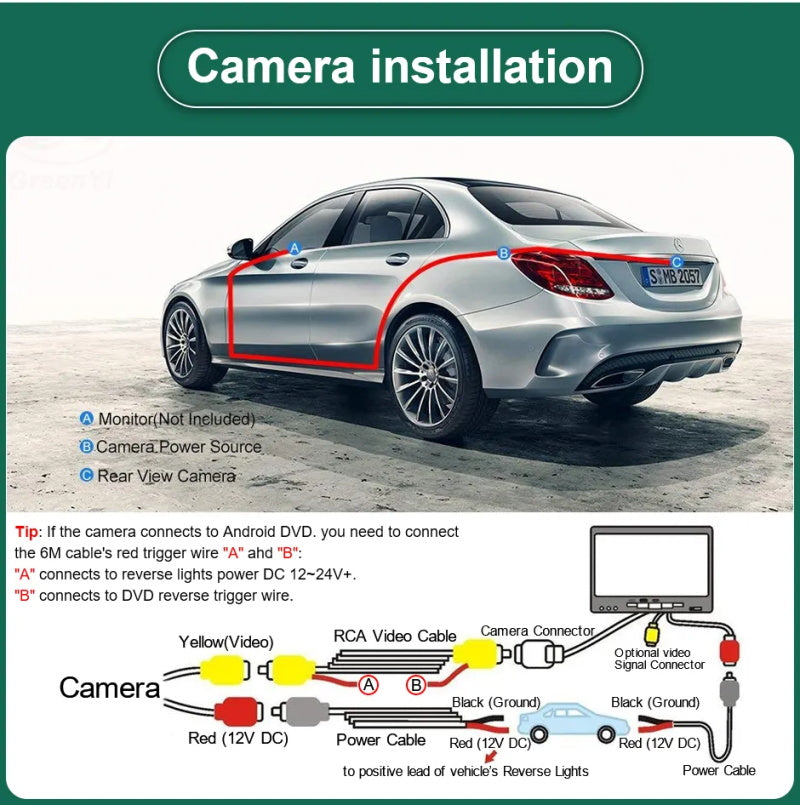

• 2. If your monitor does not support AHD video signal, please cut the white wire to switch to CVBS video signal. Please reconnect all cables. (The trajectory camera only supports AHD video signal.)
• 3. If you connect the camera to a DVD player and it does not work properly, please check whether the DVD reverse trigger cable is correctly connected.
