AUTOOL C100 Gasoline Fuel Injector Cleaner - Fuel Injector Nozzle Flush for Gasoline EFI Throttle...

Product Overview

AUTOOL C100 Petrol Auto Injector Cleaner Petrol Auto Fuel Injector Nozzle Flush For Petrol EFI Throttle... is a workshop product for professional applications in garages, workshops and vehicle service.

Key Features

• Set version with multiple components

Technical Data & Product Details

Product Details

• AUTOOL C100 Petrol Auto Injector Cleaner Petrol Auto Fuel Injector Nozzle Flush For Petrol EFI Throttle Tools for Petrol Car

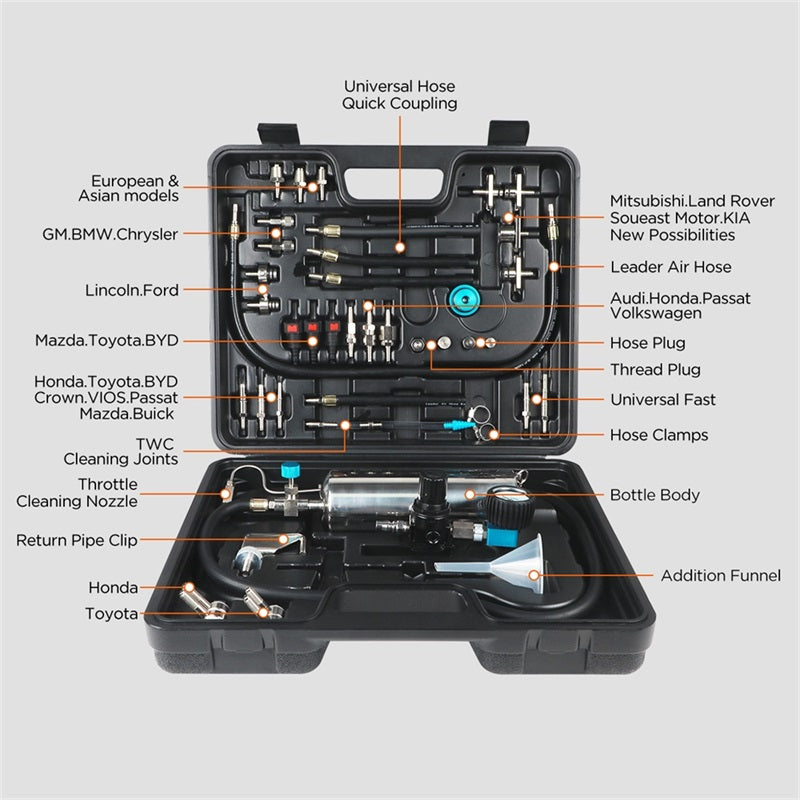

• The fuel injector cleaning sets include many different types of adapters and cover almost all cars and light trucks from the EU, Asia and the USA. Non-disassemblable fuel injector, throttle body and fuel system. The system is not only characterized by the high- and low-pressure cleaning function, but also combines the function of the entire combustion chamber fuel system with several main functions in one product, such as cleaning the throttle body and fuel nozzle.

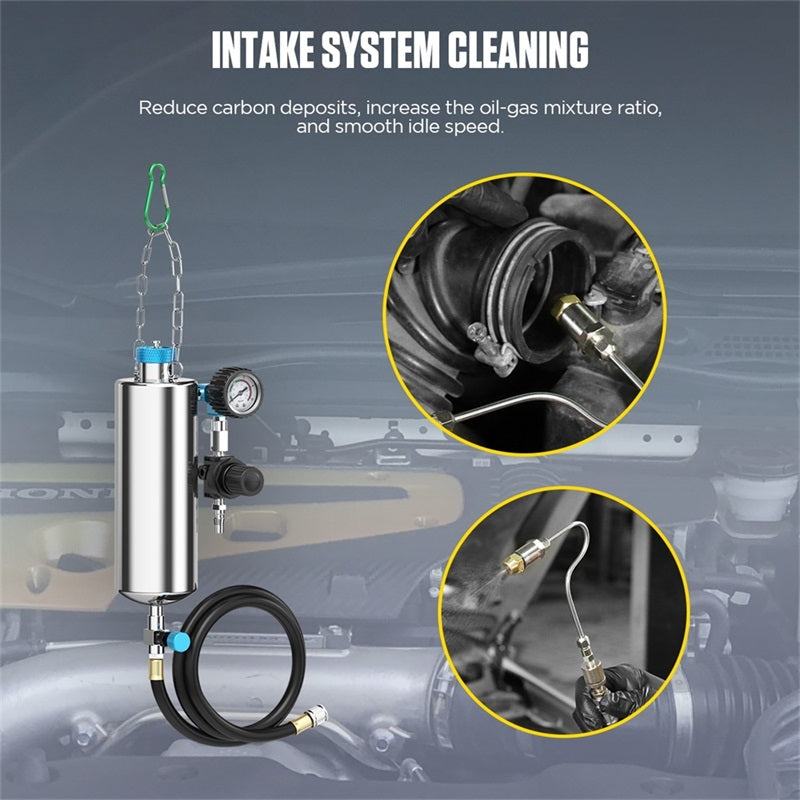

• Throttle body style
• For the throttle body system, the connection type is the same, you just set the air source pressure to 1–5 PSI.
• How to identify the inlet and return hose
• 1. Generally, the inlet hose is larger and the return hose is smaller.
• 2. On the inlet hose side, a filter is always connected, and on the return side a buffer.
• 3. There is an arrow on the hose indicating the direction of fuel flow.

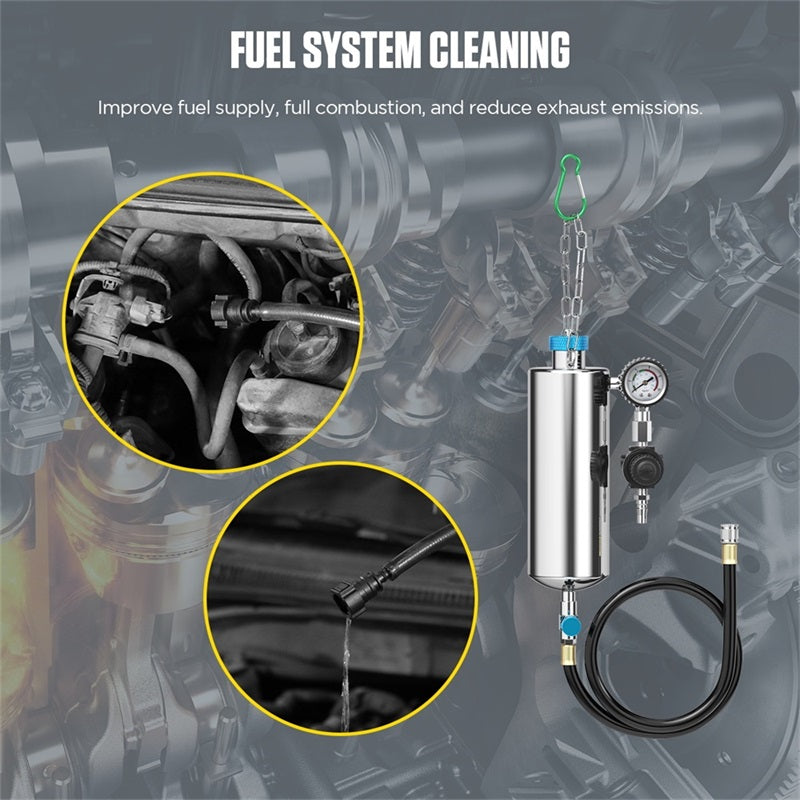

• EFI model
• 1. Find the fuel return hose, disconnect it and connect it with a suitable adapter.
• 2. Find the fuel inlet hose, disconnect it and connect it with the corresponding adapter to the outlet hose of the cleaner.
• 3. Connect the outlet and return hose of the fuel tank and open the fuel cap.
• If there is no return hose, please move the fuel pump fuse so that the pump does not operate.
• 4. Fill the cleaning fluid into the tank of the cleaner.

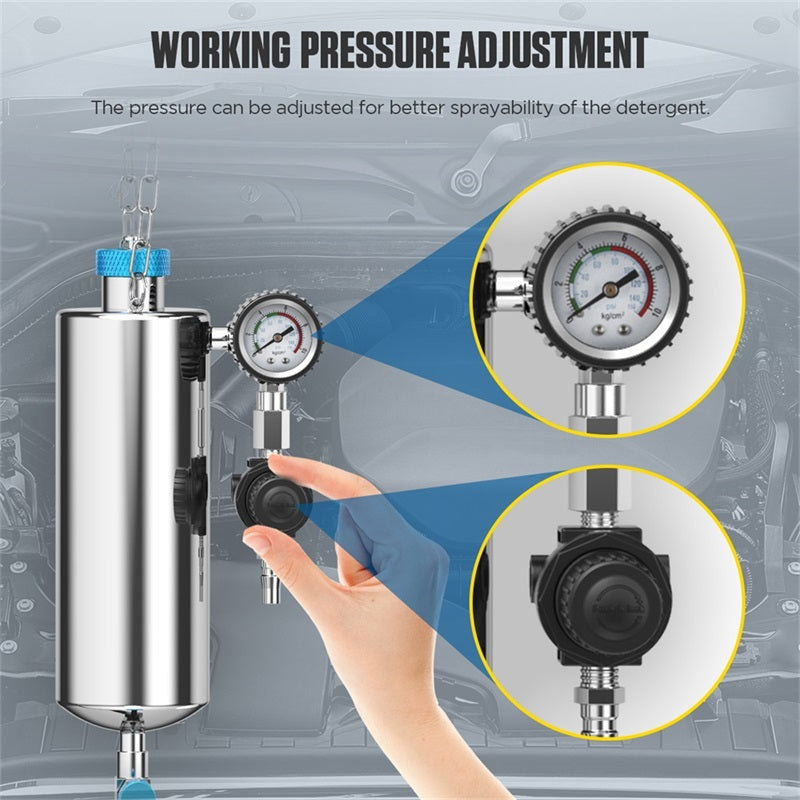

• 5. Connect the power supply of the air source to the air connection of the cleaner and set the pressure to 40–50 PSI.
• 6. Check all connection points to ensure there are no leaks.
• 7. Start the engine to clean the fuel system.
• NOTE

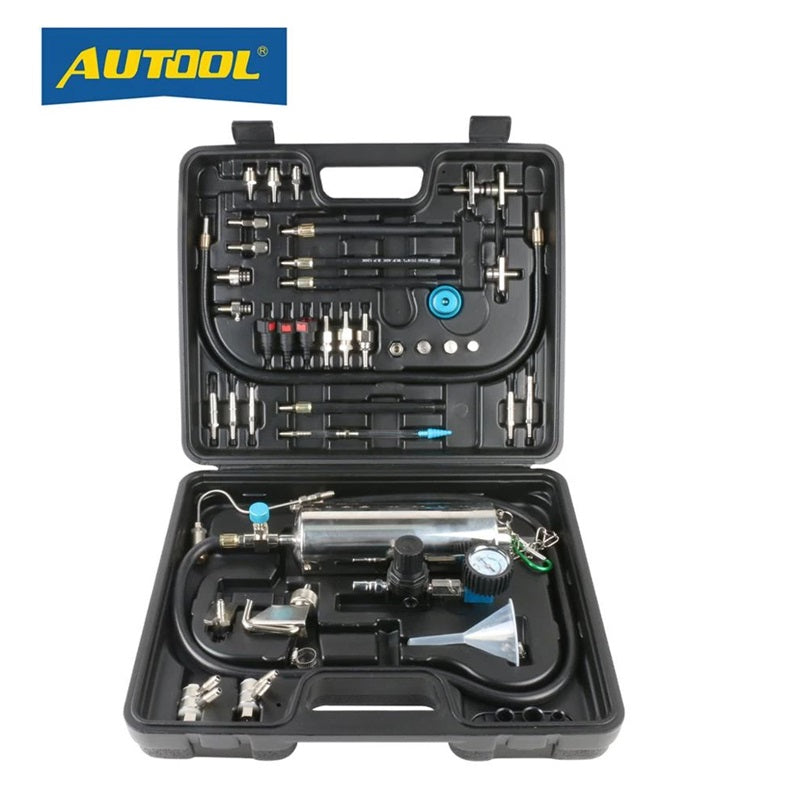

• Items included

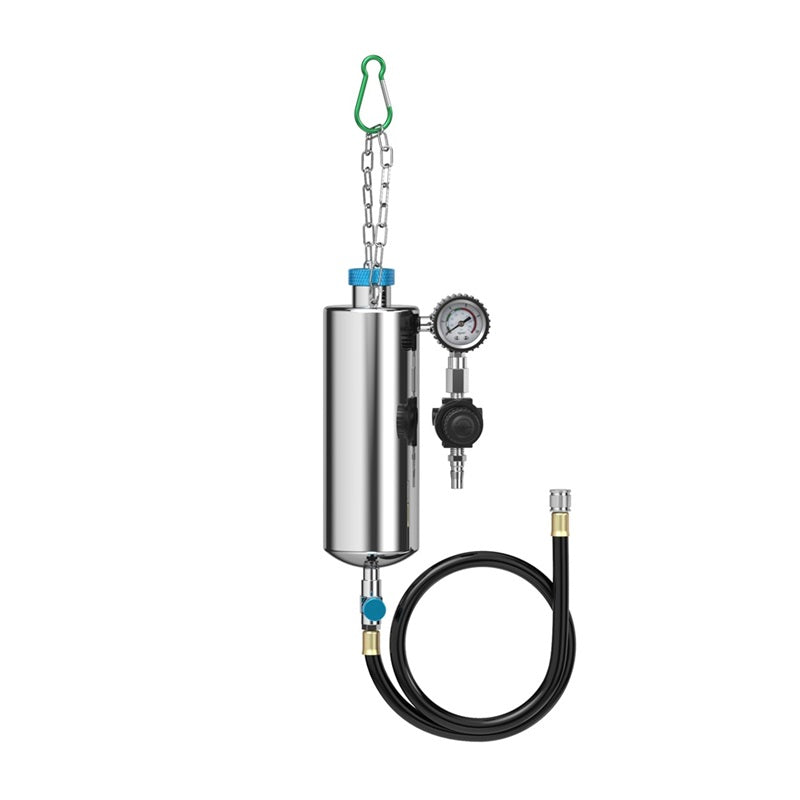

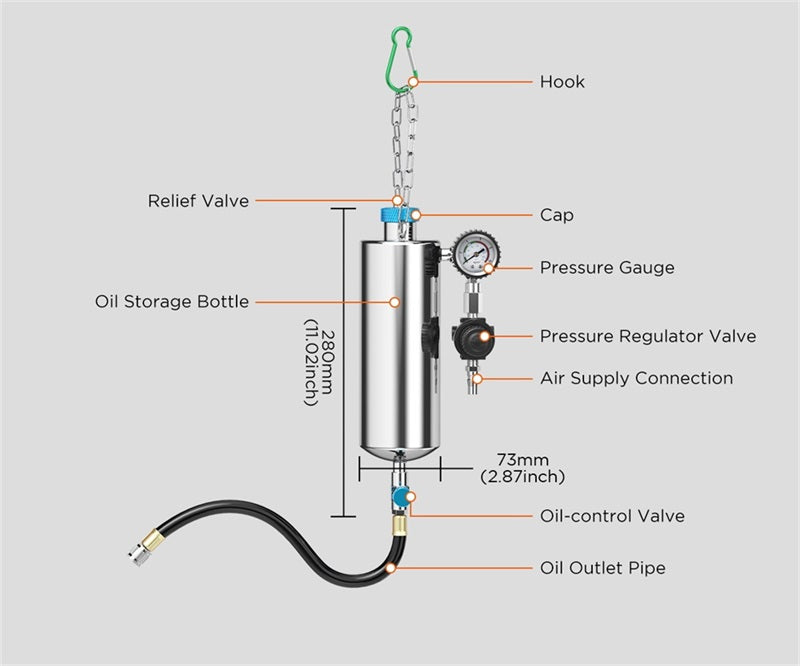

• 1x Fuel injector cleaner

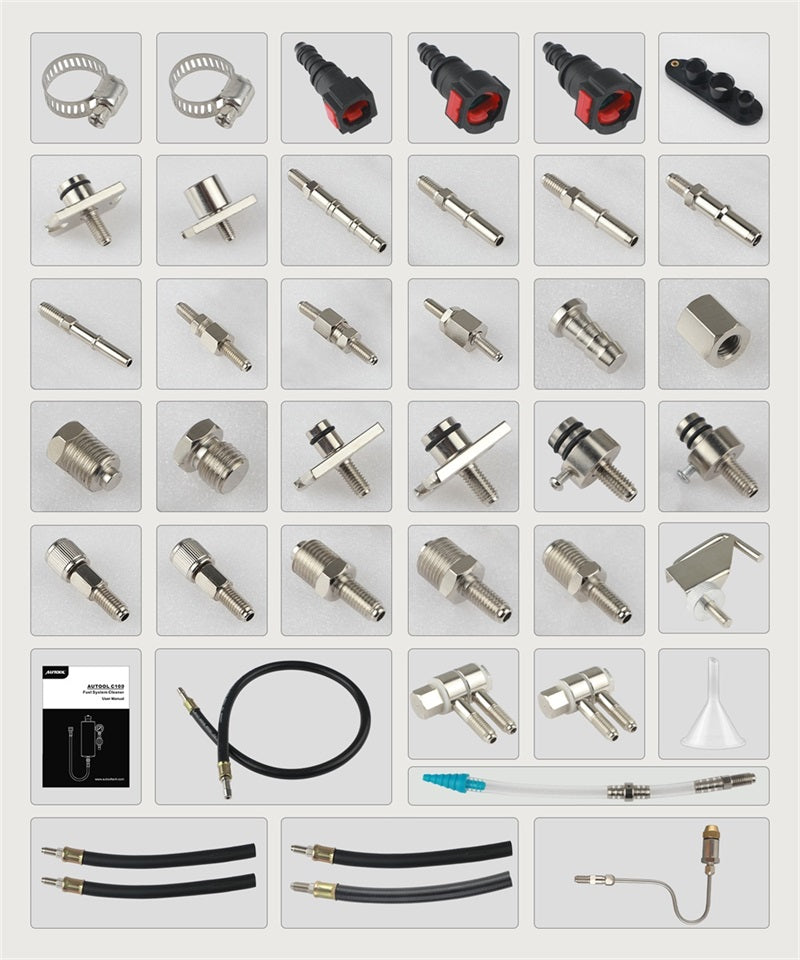

• 1x Adapter kits
• 1x Case

Note

Please check before purchase whether the product is suitable for your application, your vehicle model and your workshop requirements.
