Product Overview
DC 10V-50V 5000W 200A Programmable DC Motor Adjustable Speed Controller Regulator PWM Reversible Controller is a workshop product for professional applications in garage, workshop and vehicle service.
Key Features
Technical Data & Product Details
Product Details

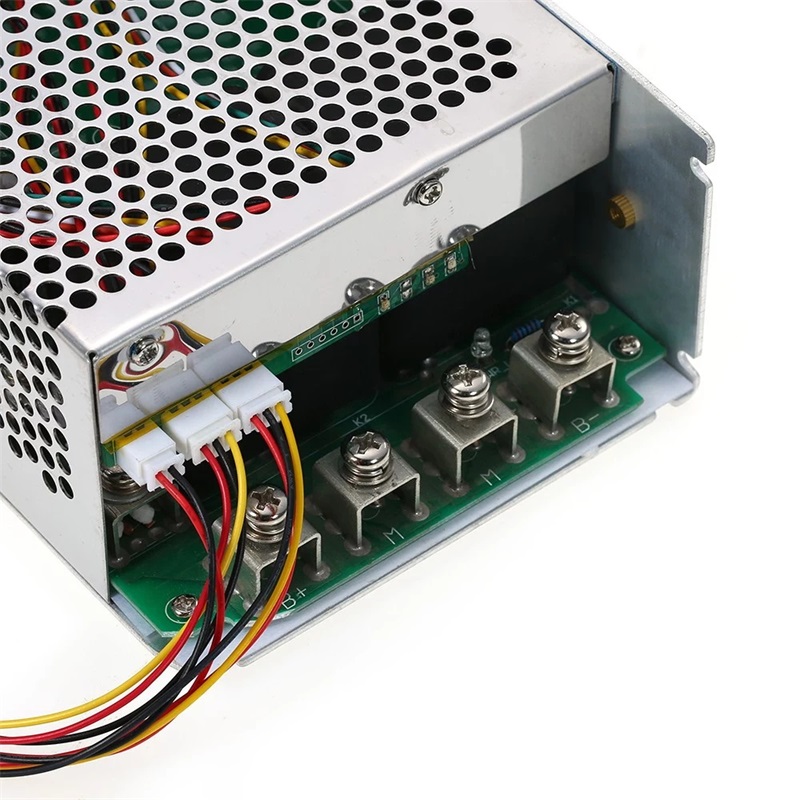

- DC 10V-50V 5000W 200A Programmable DC Motor Adjustable Speed Controller Regulator PWM Reversible Controller
- Properties
- Industrial design, 200A high current, continuous operating current can reach 100A
- Wide operating voltage: DC 10V-50V; Control power: 0.01-5000W
- Positive reversal of motor control, pure silver contact relay can carry larger current
- 0-5V analog signal voltage controls rotation speed
- With forced fan to solve the heating problem of high current operation
- Programmable design is ideal for function development
- Can be applied to windshield wiper motor, exhaust fan, etc. and provides good motor speed adjustment
- Applications
- 1. Various types of general-purpose brushed DC motor speed
- 2. Various types of vehicle motor speed adjustment (car fan speed, automatic fan speed, automatic wiper motor speed, car air conditioner fan speed)
- 3. Production line belt speed, pipeline exhaust fan speed, treadmill speed, multiple computers parallel fan speed control, electronic fan speed control
- 4. Various types of DC lamp dimmer, various types of DC heating thermostat, etc.
Specifications
- Operating voltage: DC 10V-50V
- Max. current: 200A (max. continuous operating current 100A)
- Control power: 0.01-5000W
- Static current: 0.05A
- PWM Duty Cycle: 0% -100%
- PWM frequency: 15 kHz
- Control voltage: 0-5V
- Operating temperature: -20 to 40 °C
- Size: 23.5 * 11.5 * 6.5 cm
- Weight: 1.289 kg
Package List
- 1 * DC motor speed controller
Note
Please check before purchase if the product is suitable for your application, vehicle model and workshop requirements.

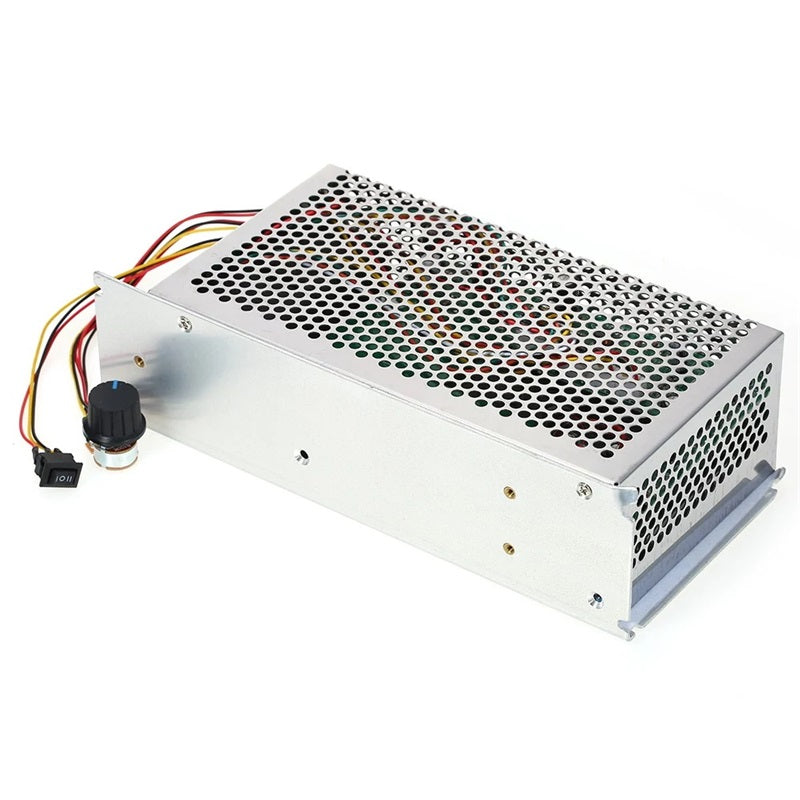

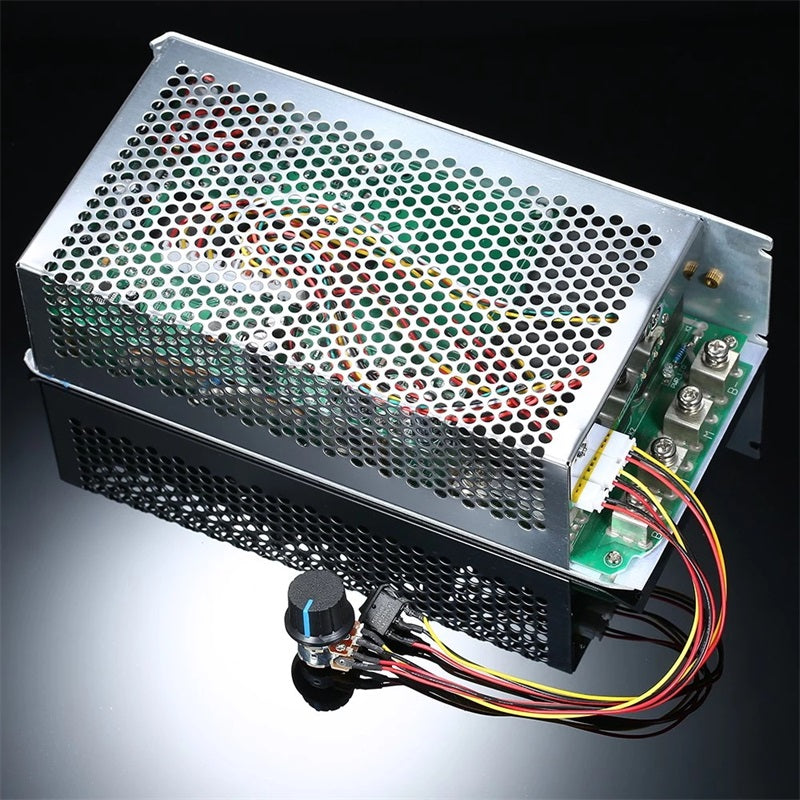

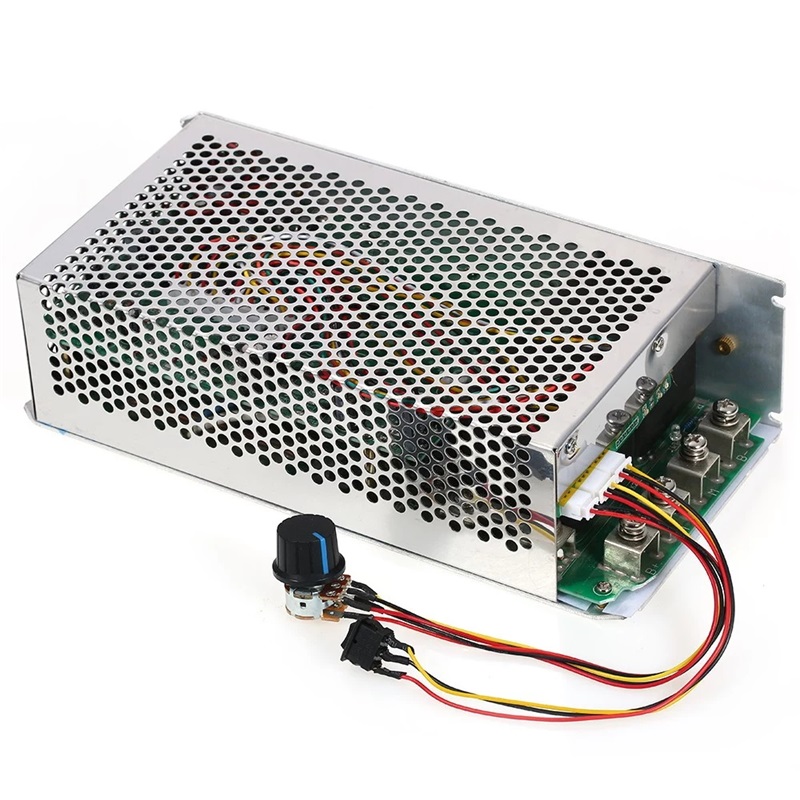

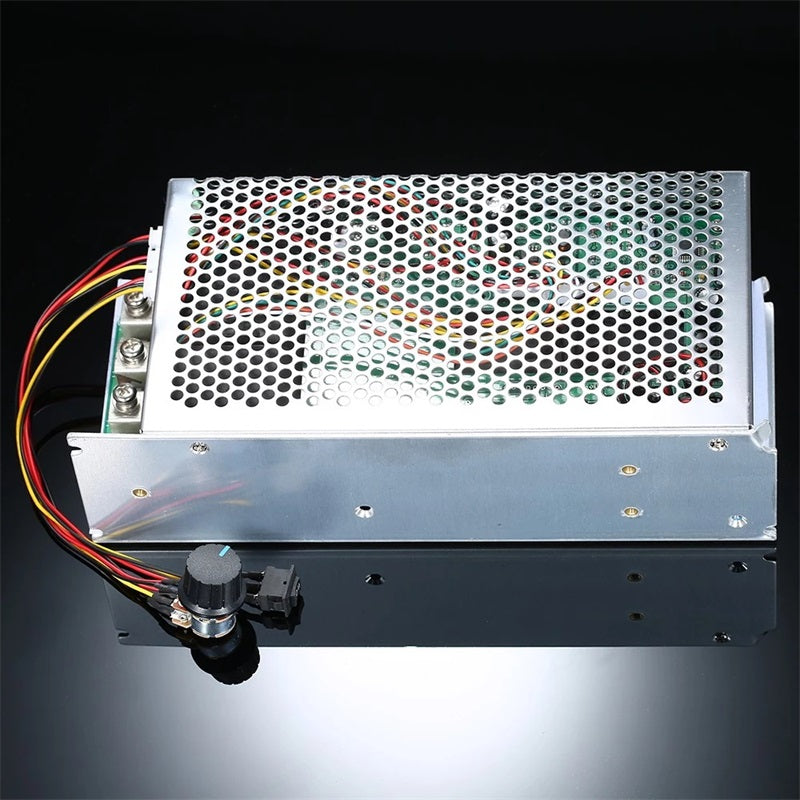

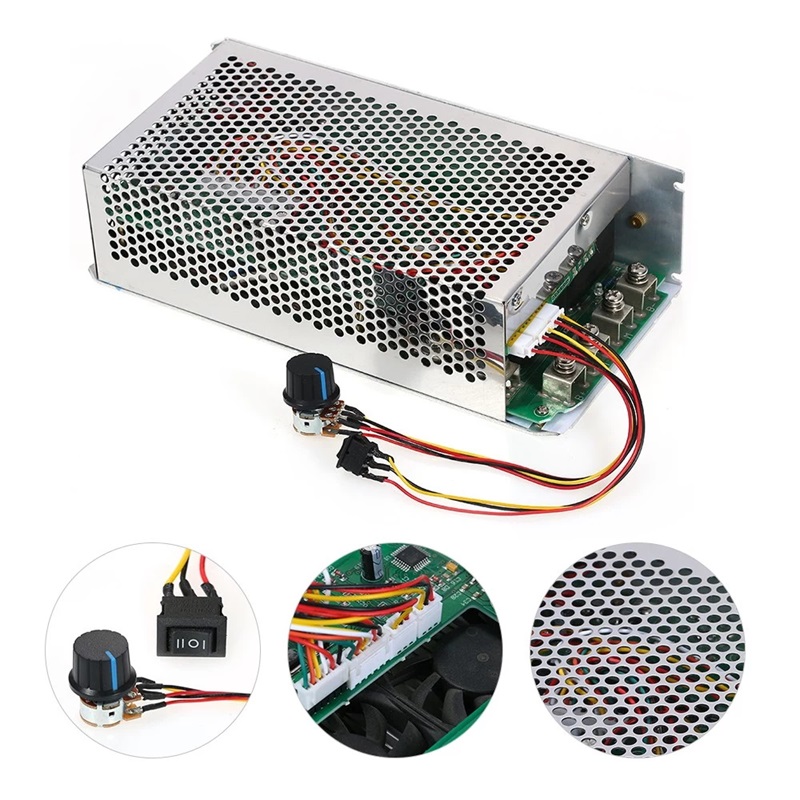

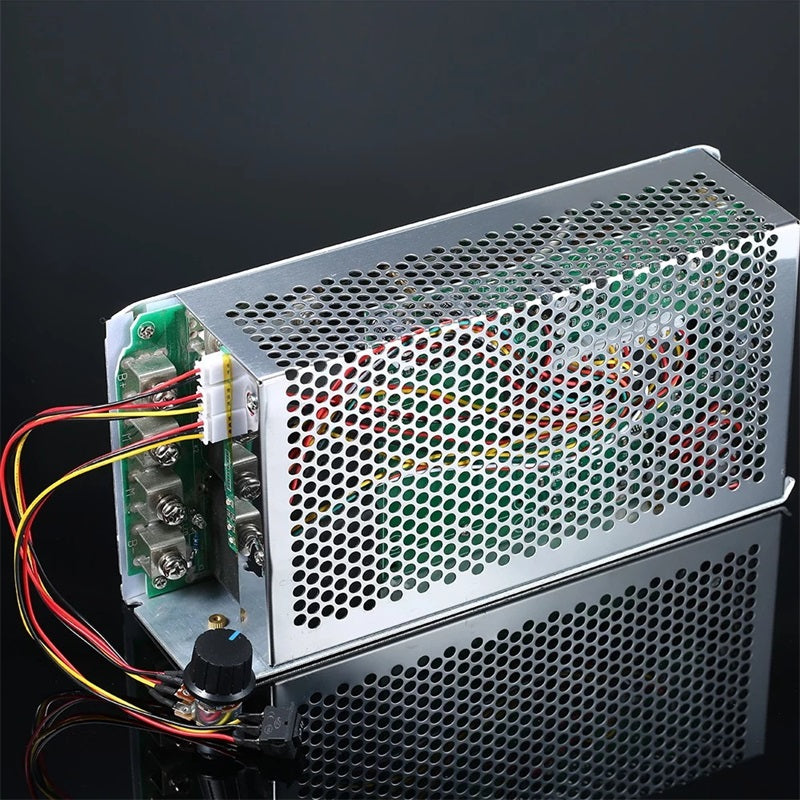

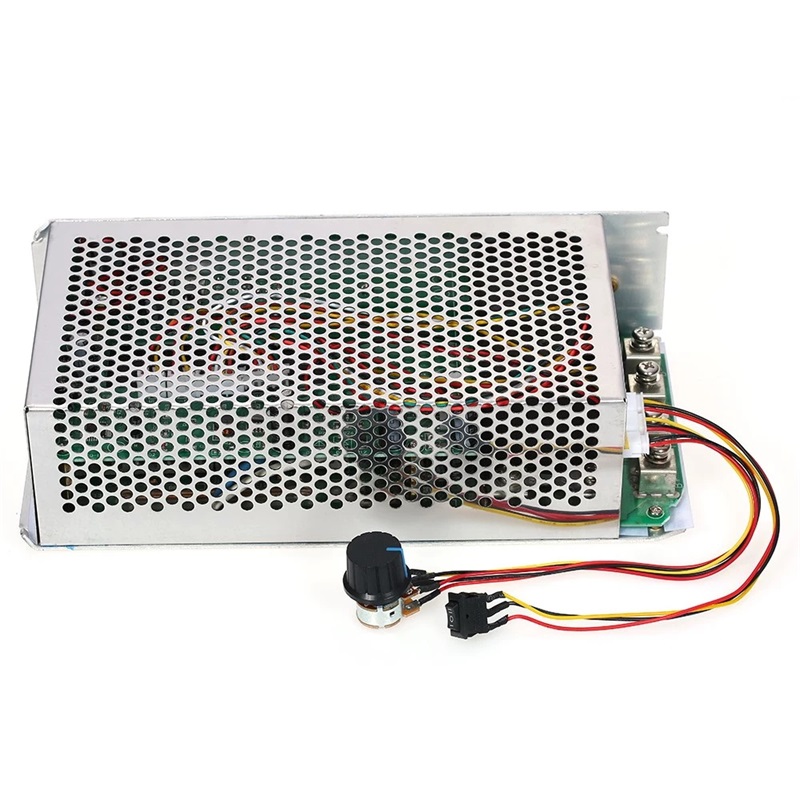

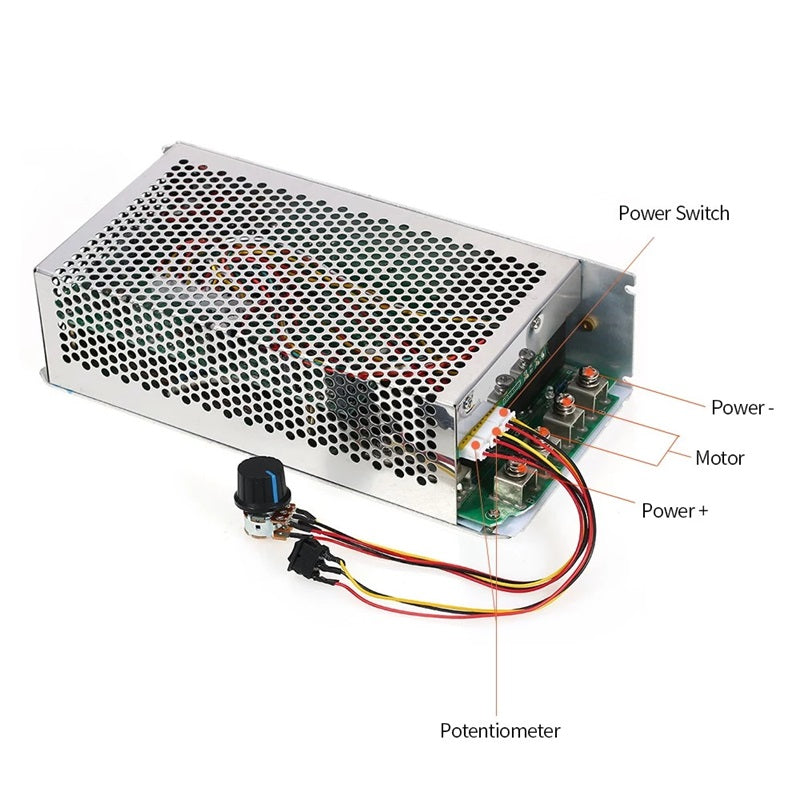

Product Images
