Product Overview
Pneumatic lubricant barrel pump, pneumatic oil dispensing set is a workshop product for professional applications in garage, workshop and vehicle service.
Key Features
- Hydraulic or pneumatic support
- Set design with multiple components
Technical Data & Product Details
Product Details

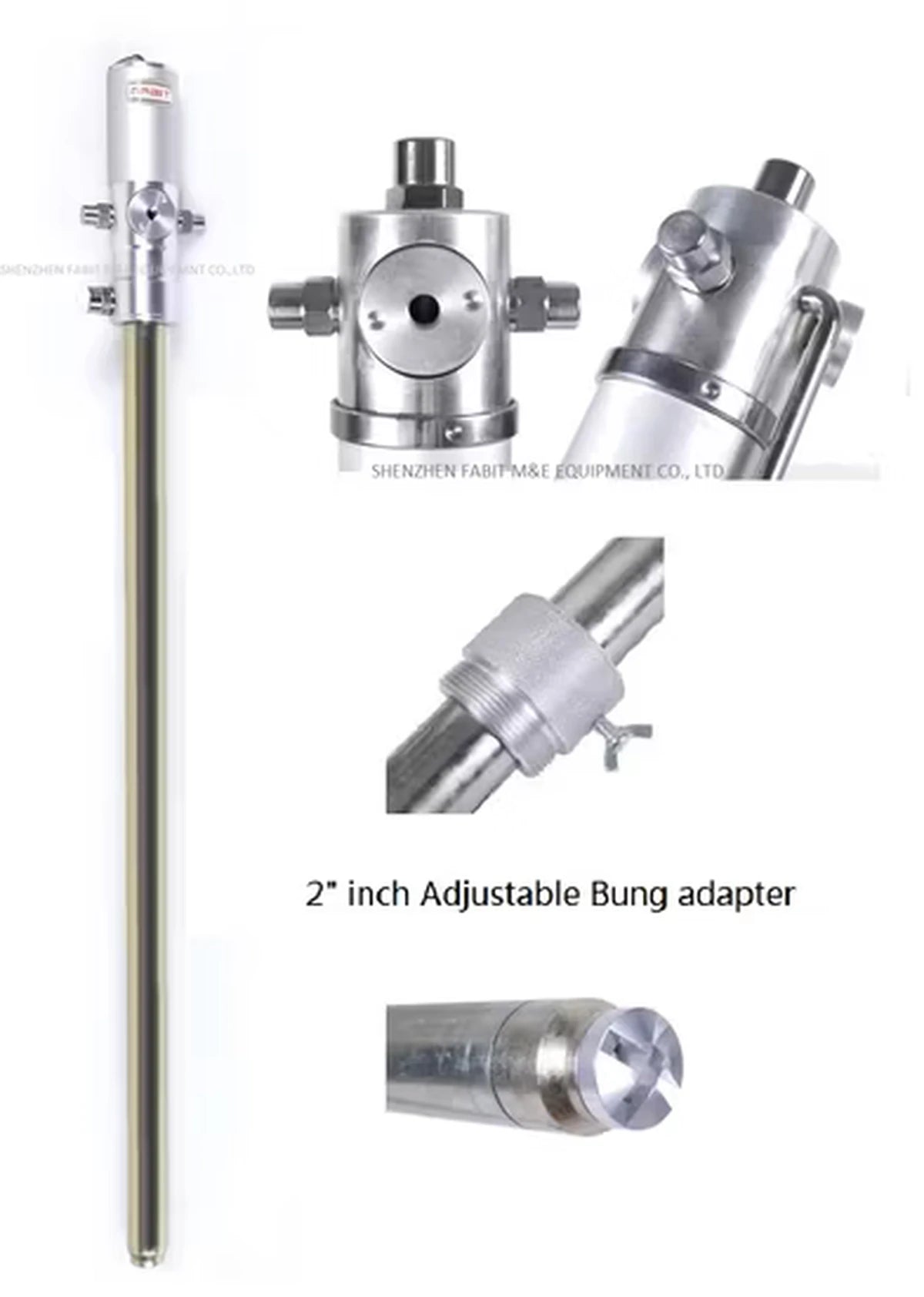

- Pneumatic lubricant barrel pump, pneumatic oil dispensing set
- With the fluid monitoring system you can at any time
- know that the workshop has allocated the fluid: each operator has a unique code
- know exactly how much fluid was dispensed before the last drop
- track all transactions to ensure that no part of the completed work is forgotten or lost in the final invoice
- avoid human errors in fluid dispensing
- with the help of the software management system and the fluid monitoring system FBT 2.0, all information is clear and accurate
Technical Data
- Compression ratio: 3:1
- Operating pressure (bar/psi): 5–8/70–115
- Maximum pressure (bar/psi): 8/115
- Air consumption (l/min/gallons): 320/84.5
- Capacity (l/min/gallons): 14/3.69
- Pipe diameter (mm/inch): 42/1.65
- Suction tube length (mm/inch): 940/37
- Air connection: 1/4" quick coupling/1/4" NPT female thread
- Oil connection: 1/2" male thread
- Max. viscosity of supplied oil: SAE 150
- Temperature of supplied oil: -10–50 °C
- Noise level (dB): 82
- Oil filling gun: Automatic oil gun with protective device
- Measuring accuracy: ±5 ‰
- Length of refueling hose: 4 m
- Rollers: 4 x load rollers, load capacity 300 kg
- Management system: Fabit system or custom system
- Communication system: WLAN or 4G
Note
Please check before purchase whether the product is suitable for your application, your vehicle model and your workshop requirements.
