Product Overview
Fnirsi HRM-10 automotive tester, 18650 high precision, AC, lithium, lead-acid battery voltage internal... is a workshop product for professional applications in garage, workshop and vehicle service.
Key Features
Technical Data & Product Details
Product Details

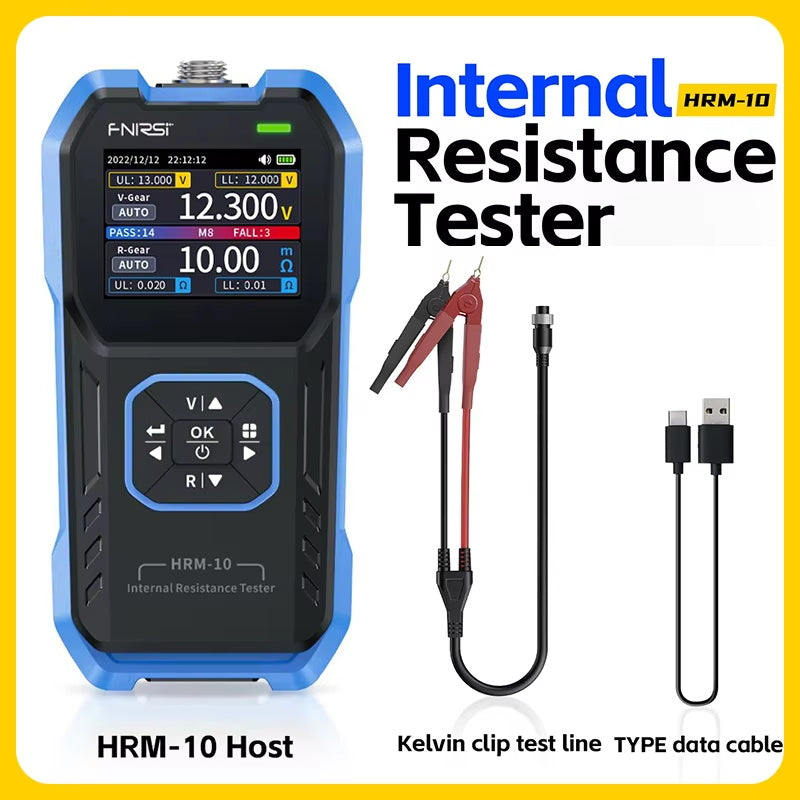

- Fnirsi HRM-10 automotive tester, 18650 high precision, AC lithium lead acid battery voltage internal resistance tester
Description

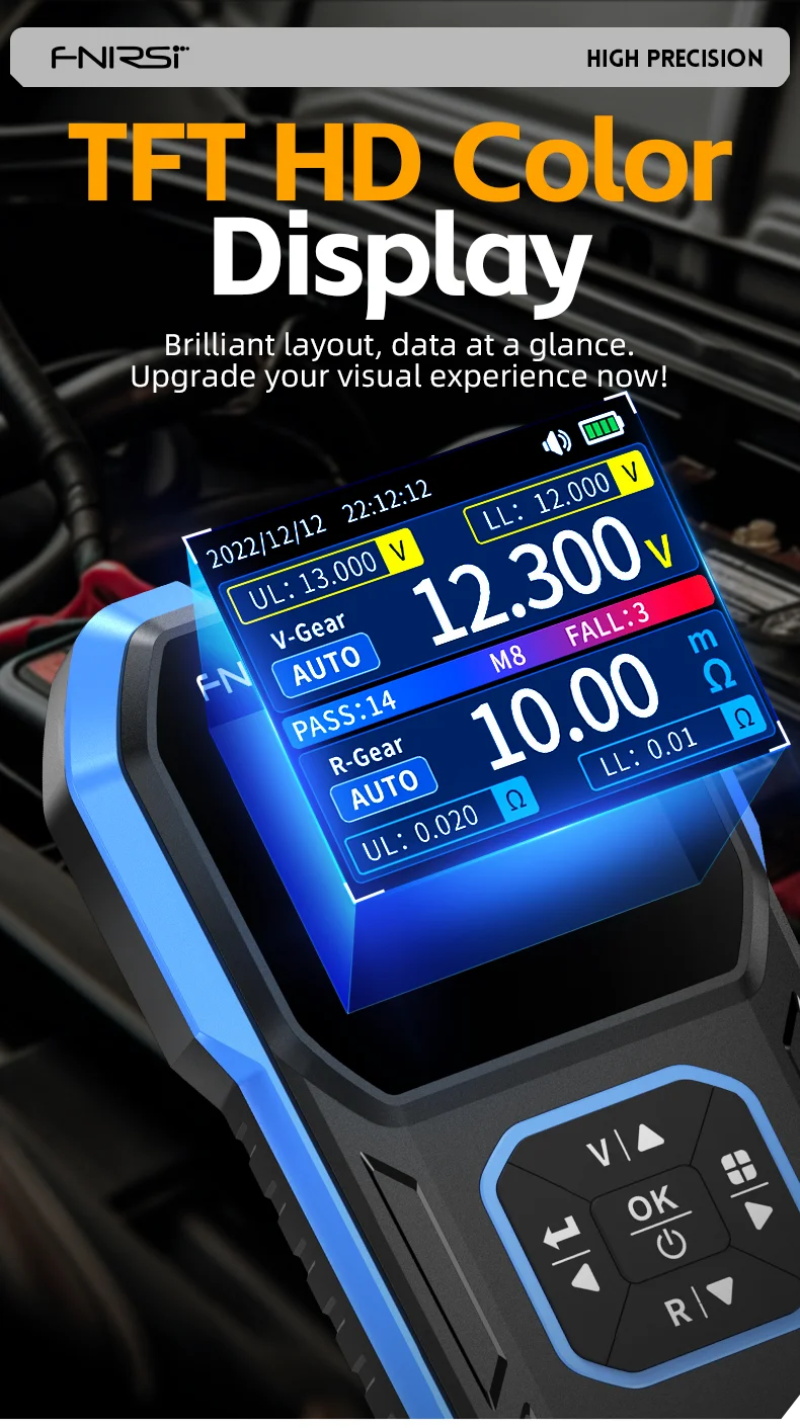

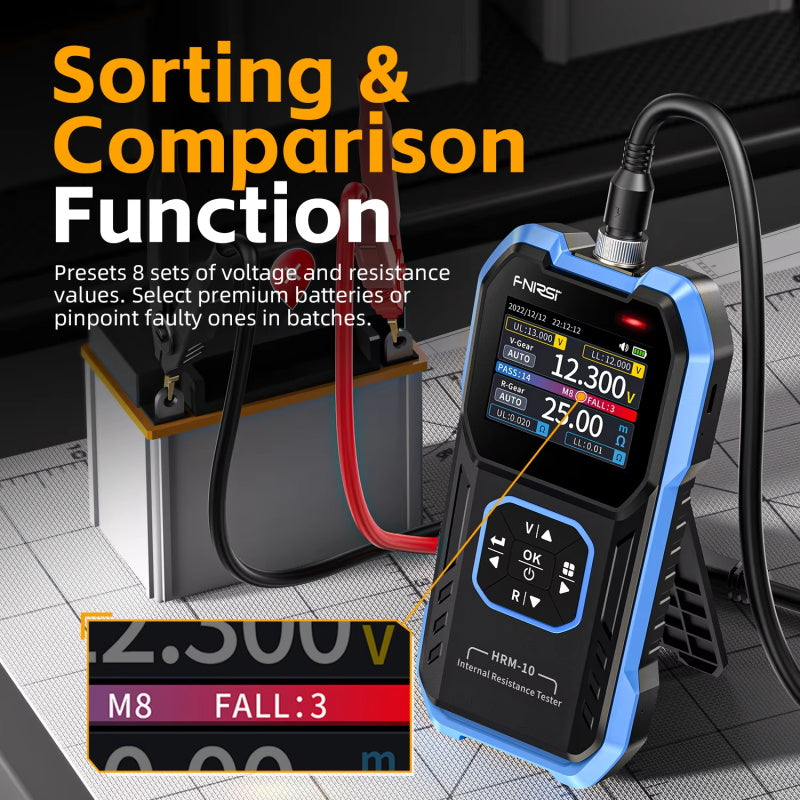

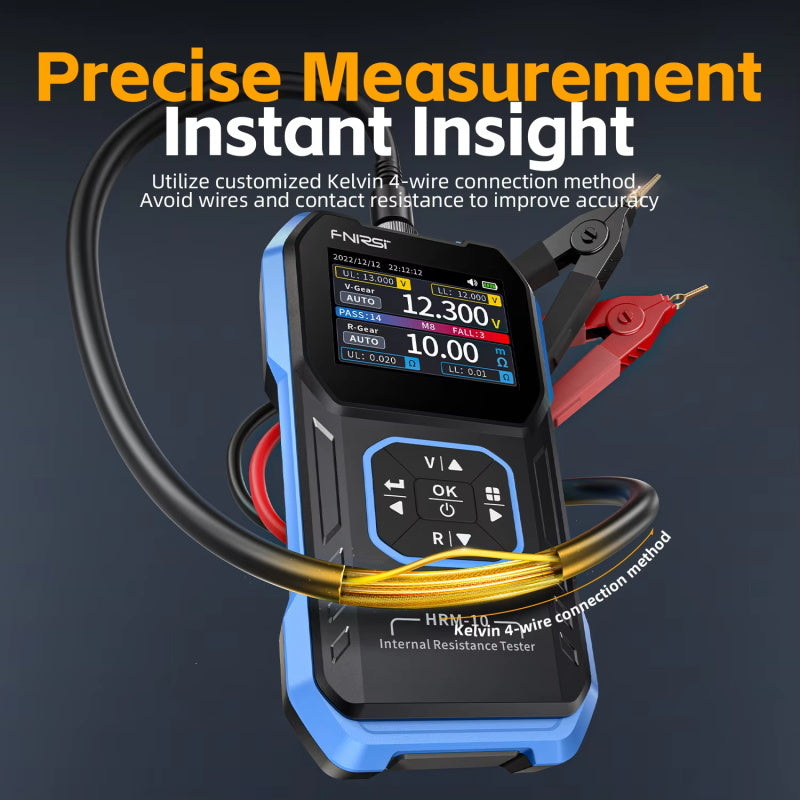

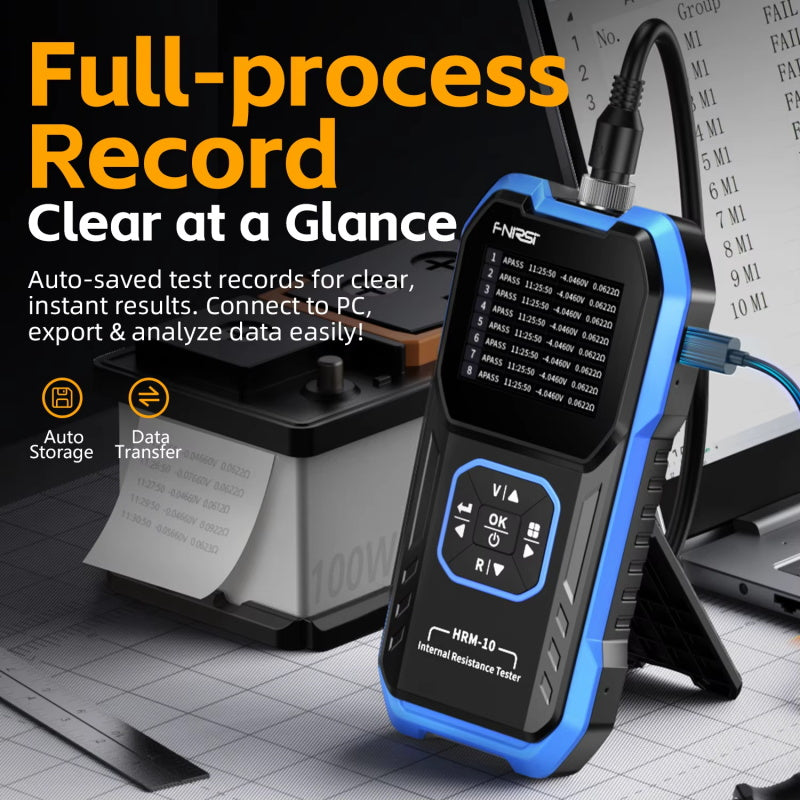

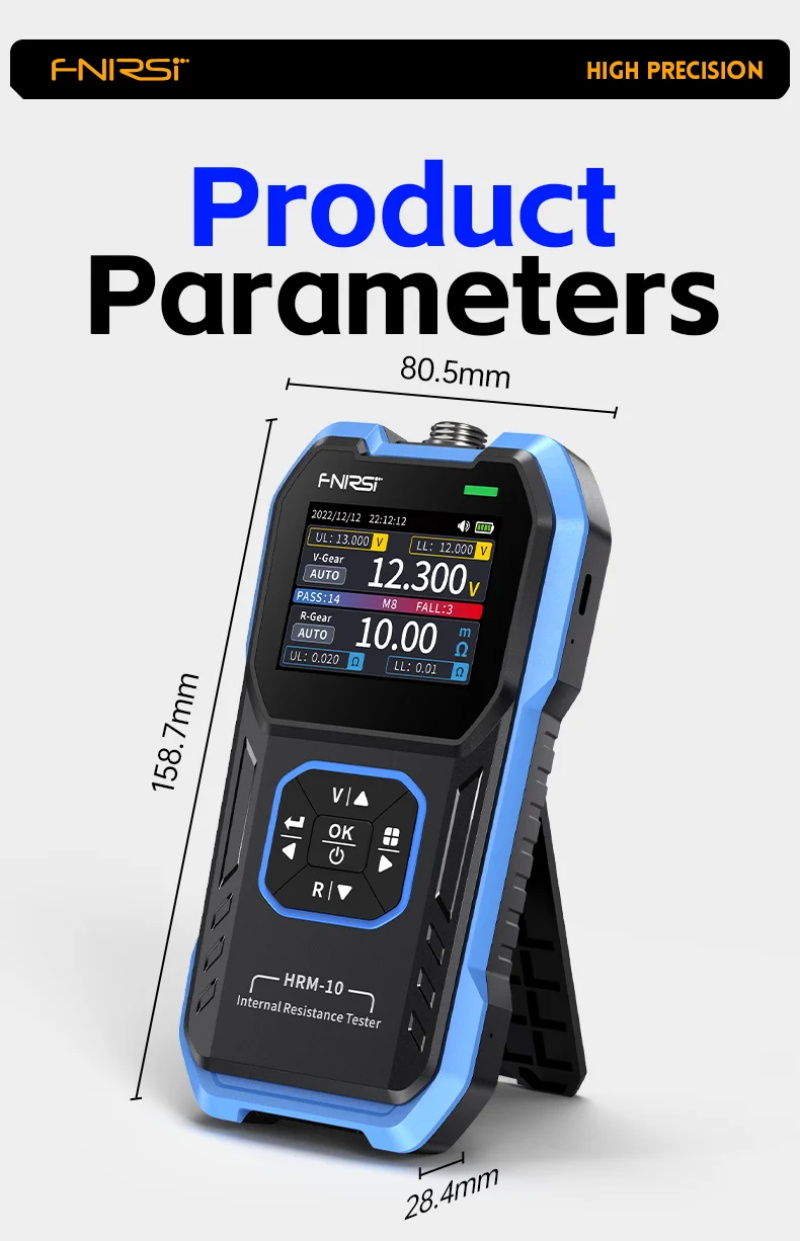

- The Fnirsi "HRM-10" is our company's first handheld high-precision battery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision and convenient to carry. The device can automatically test the internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually set the voltage and resistance ranges. The product has a sorting mode and automatically filters good and bad batteries based on user-defined threshold values. It also supports historical records and export of data tables of historical measurements.

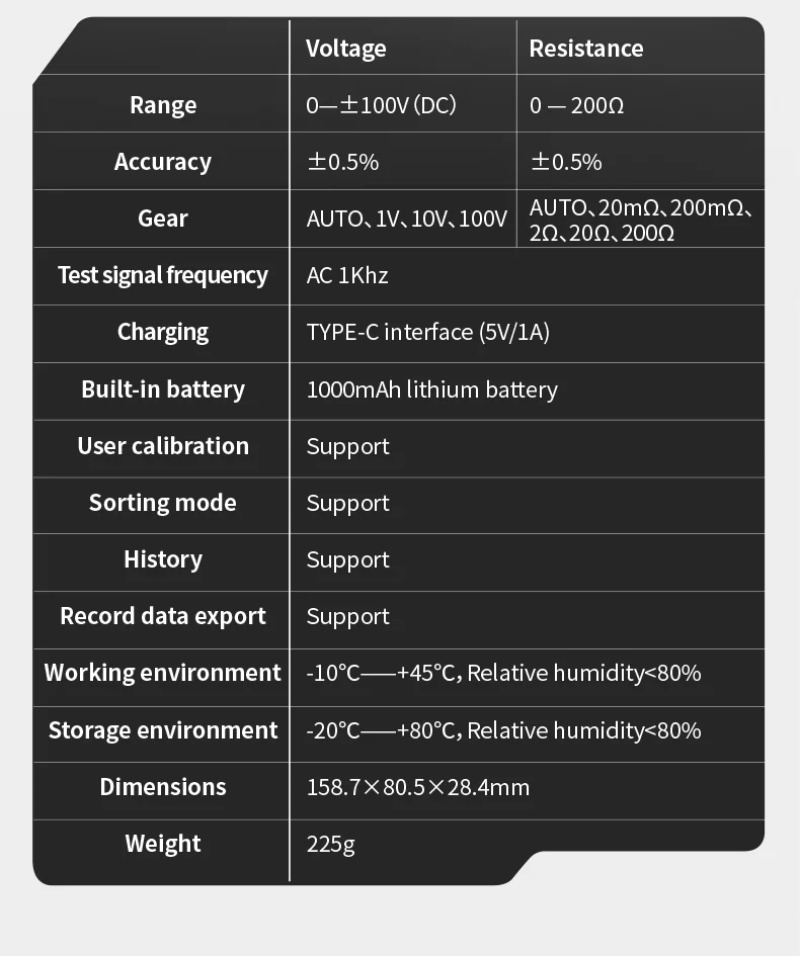

Specification
- Voltage measurement range: 0 - ±100V (DC)
- Voltage range: automatic, 1V, 10V, 100V
- Resistance measurement range: 0 - 200Ω
- Resistance range: automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
- Accuracy: ±0.5%
- Instrument test signal frequency: AC 1kHz
- Rechargeable: Type-C interface (5V/1A)
- Built-in battery: 1000mAh lithium battery
- User calibration: Supported
- Sorting mode: Supported
- History recovery: Supported
- Export recorded data: Supported
- Working environment: -10°C ~ +45°C, relative humidity
Note
Please check before purchase whether the product is suitable for your application, vehicle model, and workshop requirements.
