Product overview
HSS tap and die set is a workshop product for professional applications in garage, workshop and vehicle service.
Important features
- Set design with multiple components
Technical data & product details
Product details

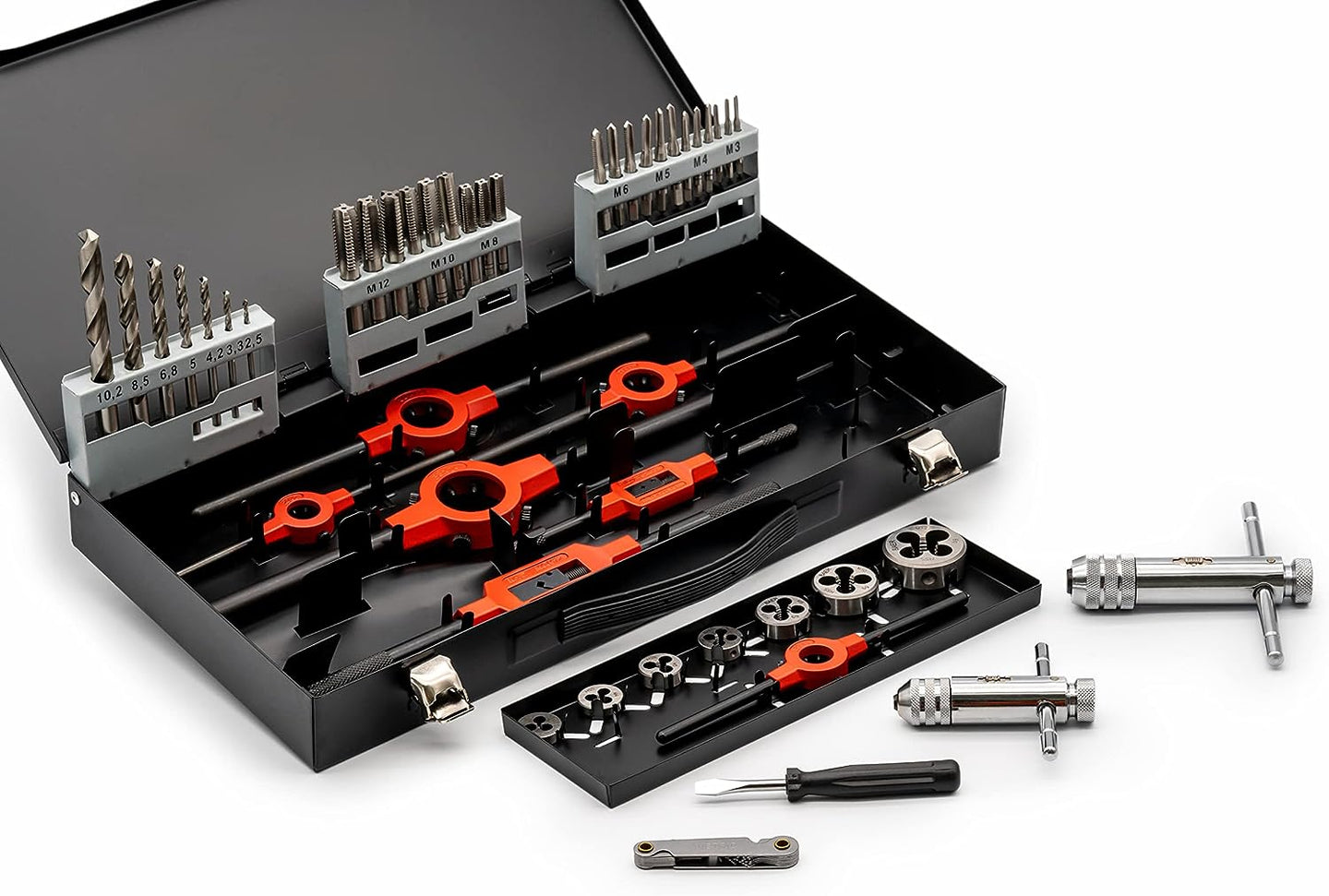

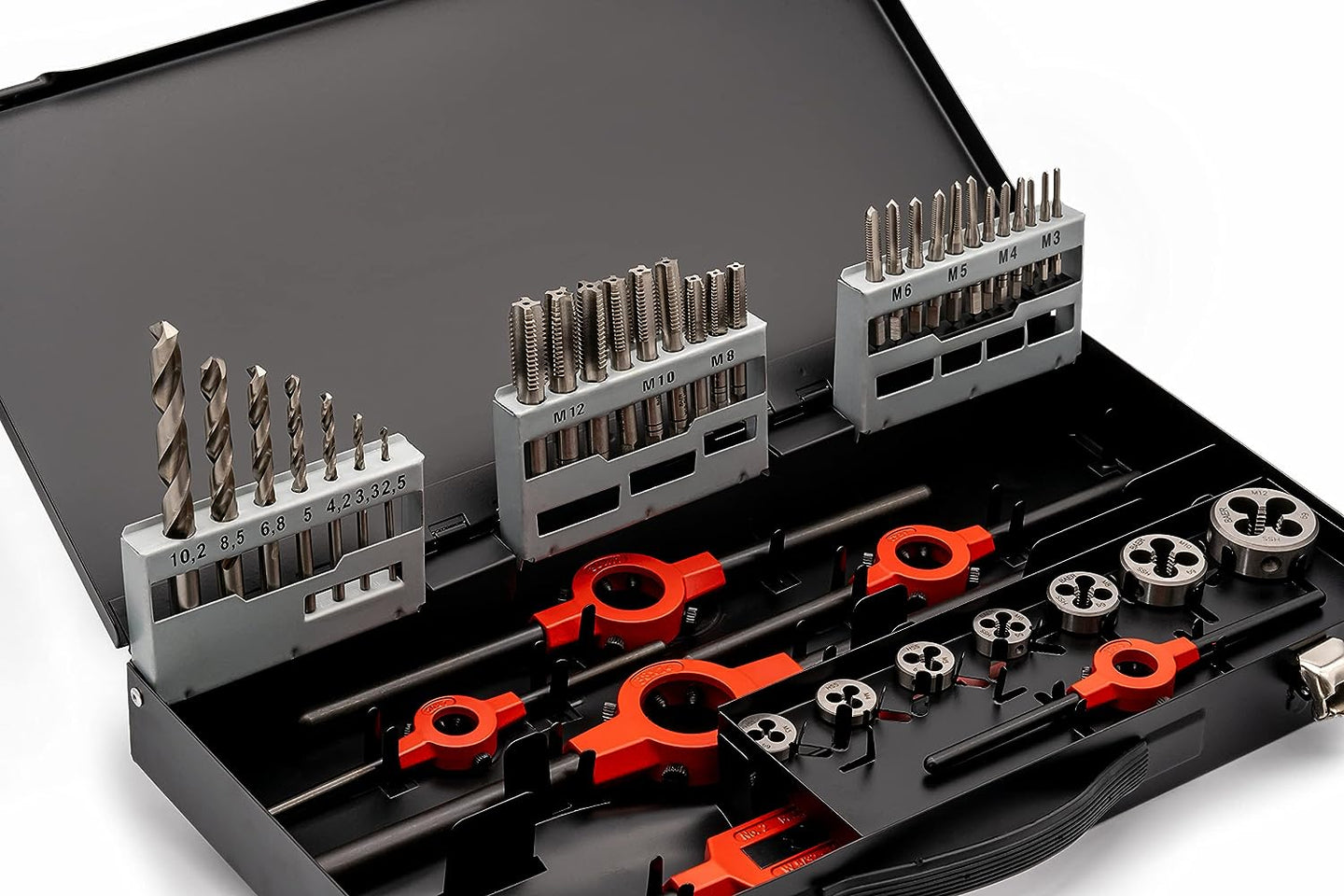

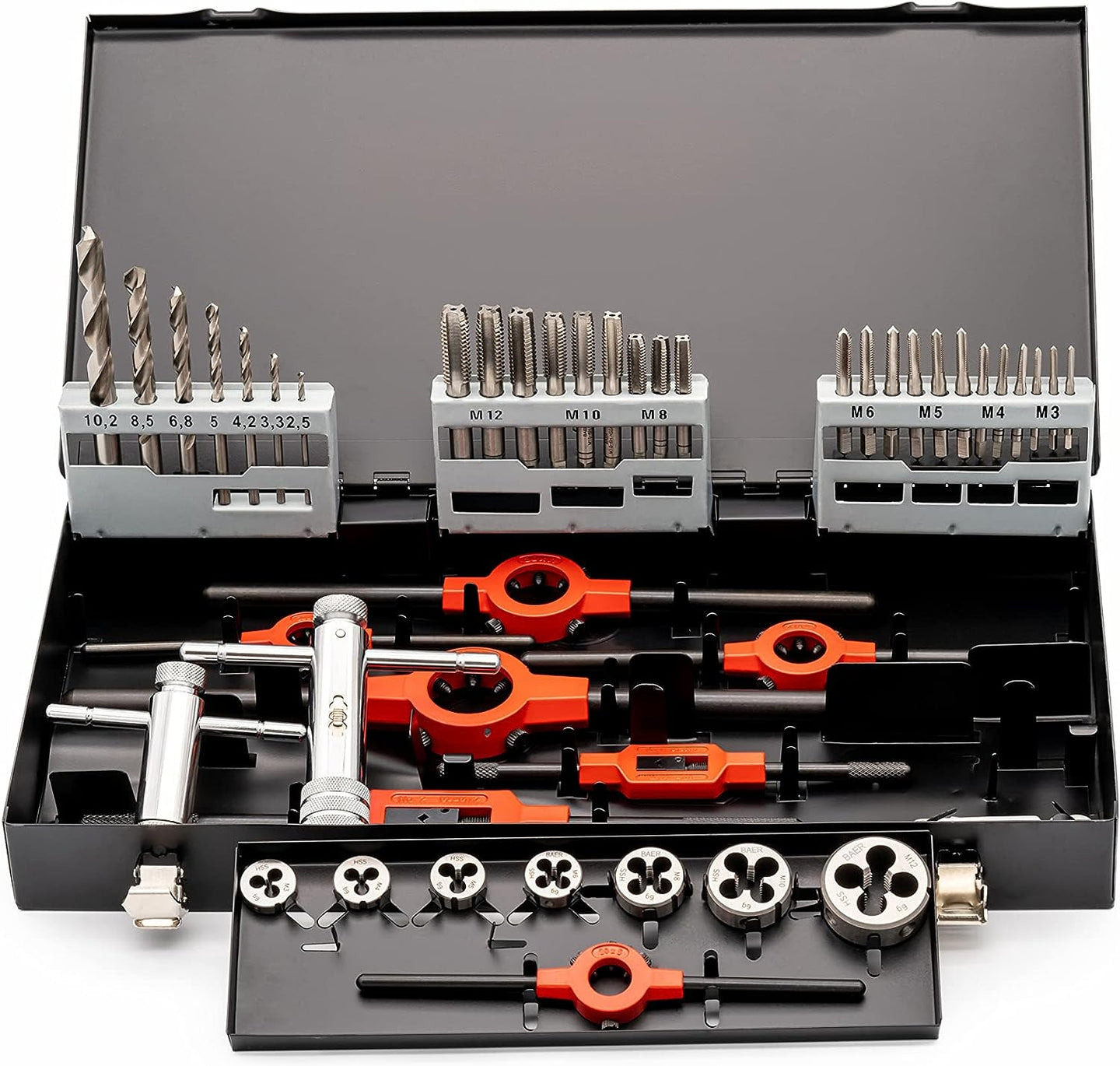

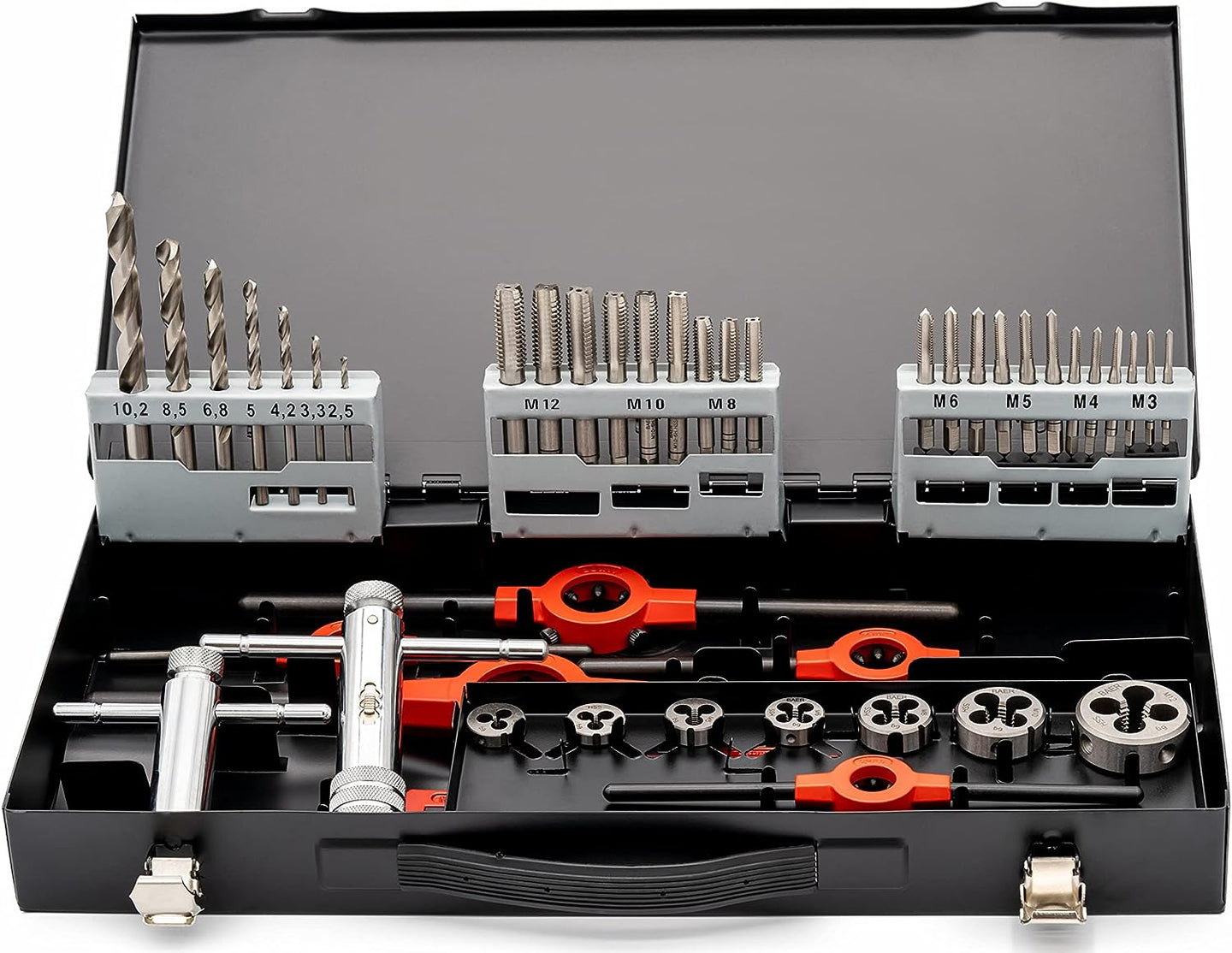

- HSS tap and die set – hand taps – dies – tools: M3-12 – Thread cutting set / thread cutting assortment / drill set

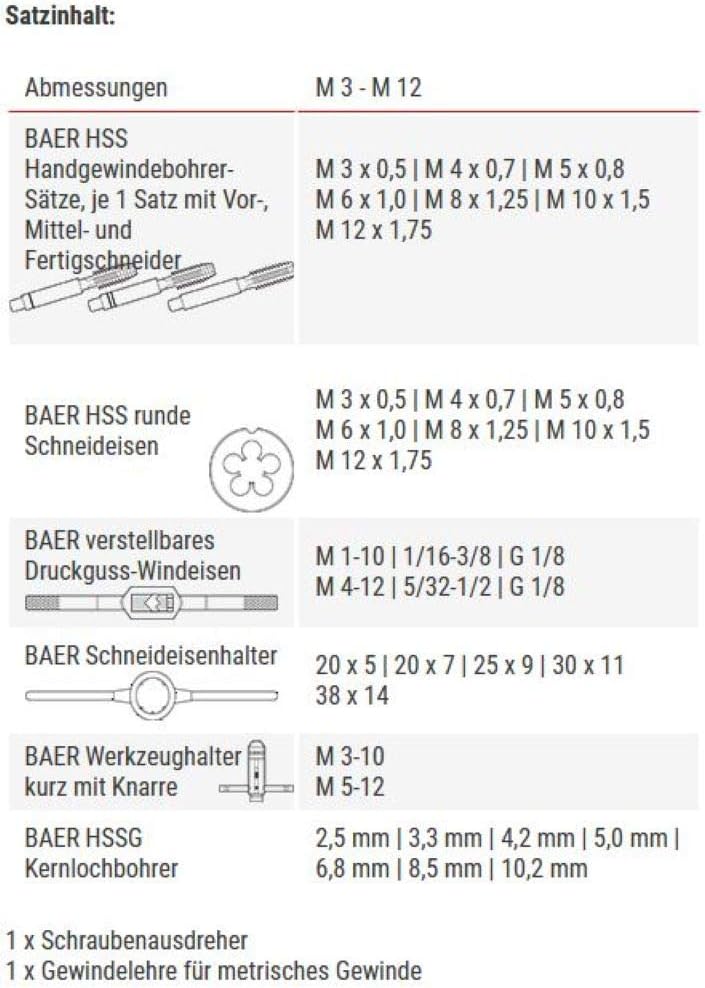

Specification - Hand tap sets

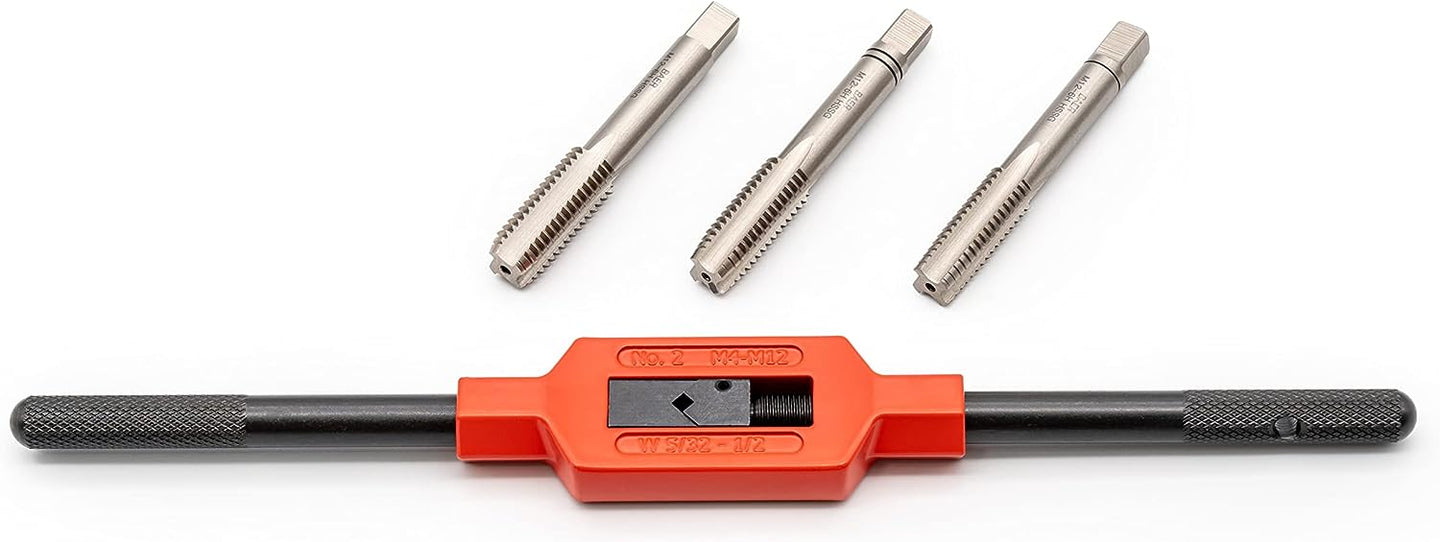

- DIN 352 hand tap sets for metric standard thread with one taper tap, one plug tap and one bottoming tap (3-piece)
- Applications
- for general use
- easily machinable materials up to 900 N/mm²
- unalloyed and low-alloy steels
- for through holes and blind holes
- for hand use

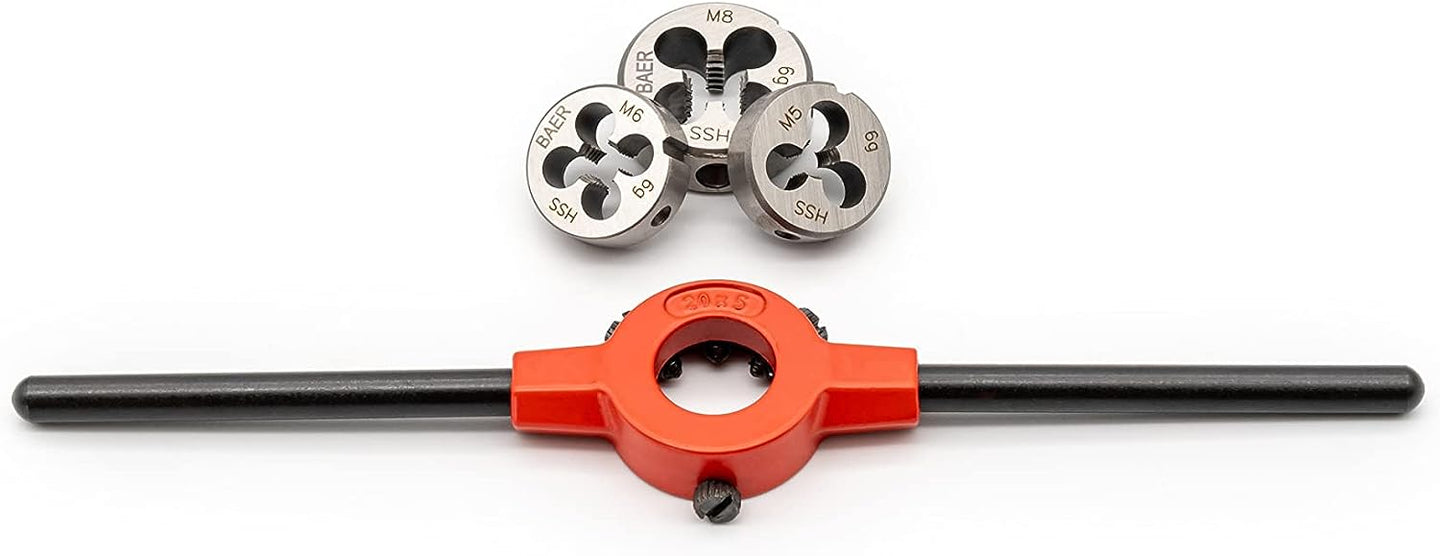

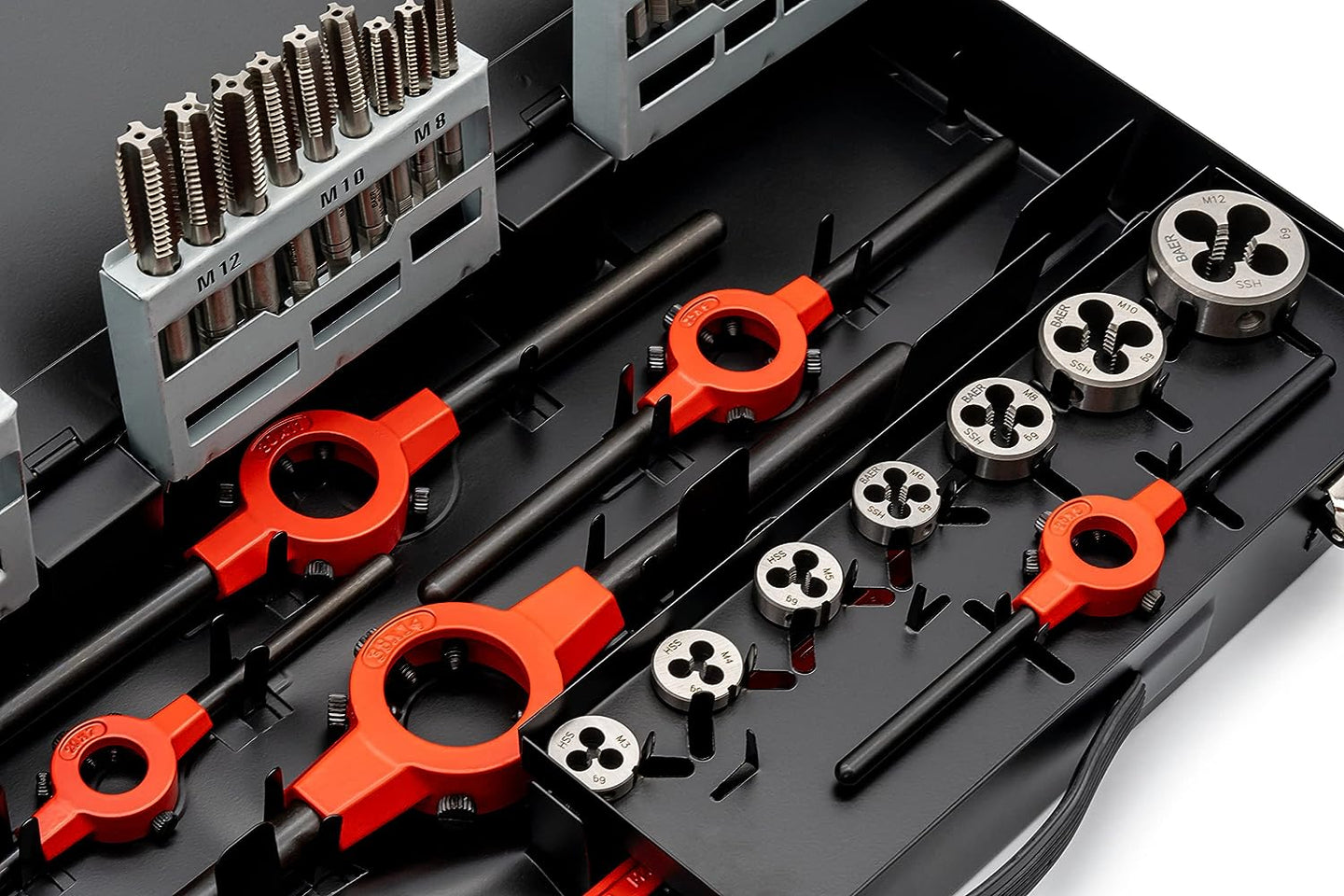

Specification - HSS round dies
- DIN 223
- Tolerance: ISO-6g chamfer: 1.5
- Applications: for general use
Specification - Adjustable die-cast die holders
- 2 pieces DIN 1814, body made of zinc die-cast, hardened jaws
- Square drive: 2.0 - 6.3 mm for taps: M 1-10 | 1/16-3/8 | G 1/8
- Square drive: 3.0 - 9.0 mm for taps: M 4-12 | 5/32-1/2 | G 1/8
Specification - Die stock holders
- 5 pieces DIN 225, body made of zinc die-cast
- Dimensions (diameter x height): 20 x 5 | 20 x 7 | 25 x 9 | 30 x 11 | 38 x 14
Specification - Short tool holder with ratchet
- 2 pieces for right and left hand thread, in all-steel design
- for hand and single-cut taps in M and MF: M 3 - M 10 & M 5 - M 10
- for hand and single-cut taps in UNC, UNF, BSW and BSF: 1/8 - 3/8 & 7/32 - 1/2
- Square drive: 2.4 - 5.5 mm & 4.5 - 7.0 mm
- Length: 85 mm & 100 mm
Specification - HSS twist drills core hole dimensions
- DIN 338
- Cutting direction: right
- Material: HSS
- Quality: profile ground
- Surface treatment: bright
- Applications: for general use - For drilling alloyed and unalloyed steels
Note
Please check before purchase whether the product is suitable for your application, your vehicle model and your workshop requirements.
