Product Overview
The compression tester is a workshop product for professional applications in garages, workshops, and vehicle service.
Key Features
Technical Data & Product Details
Product Details

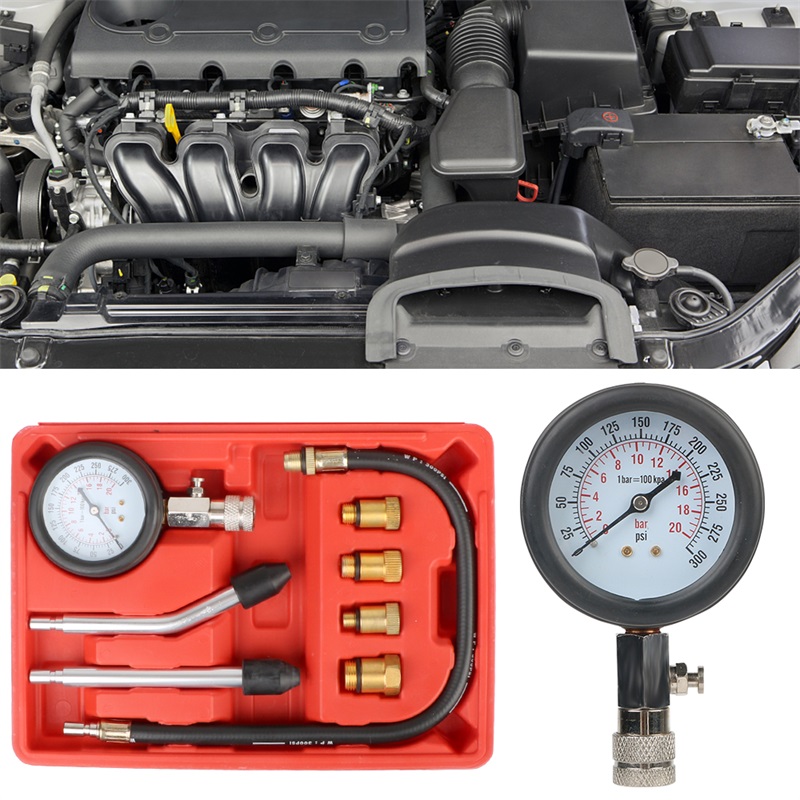

- Compression tester
- Features

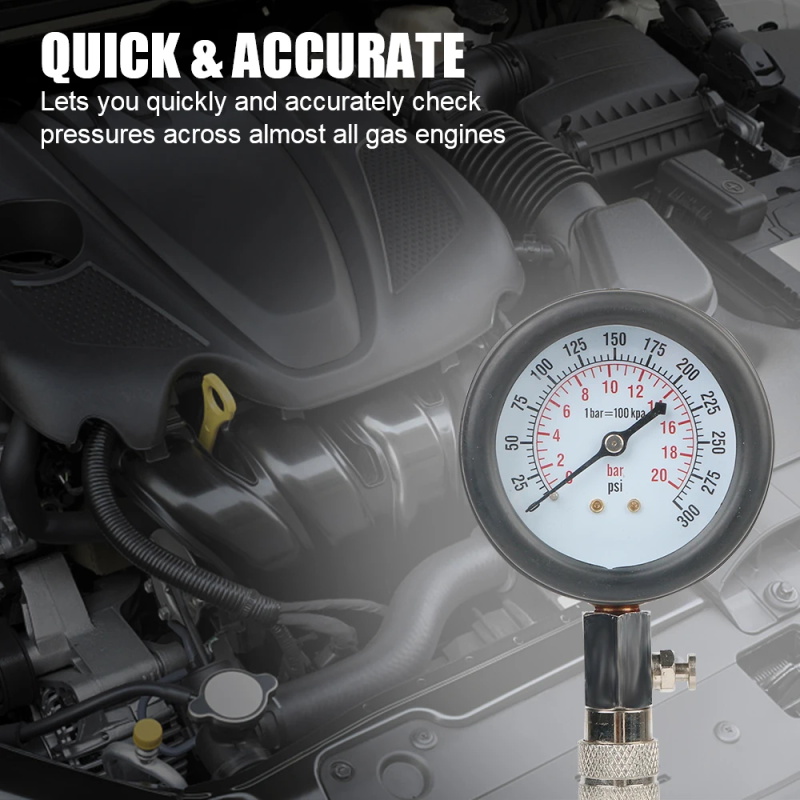

- This car compression tester works with most automobile models with gasoline engines. It comes with adapters and hoses of different sizes to fit various models. Widely used for checking cylinder compression quickly and accurately.

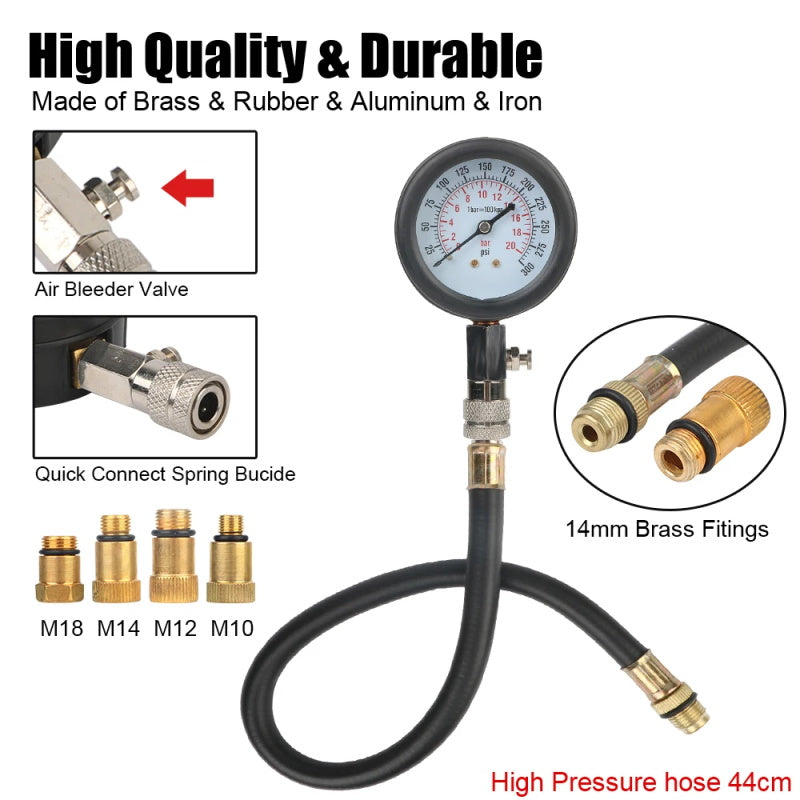

- Copper nickel-plated drain valve, anti-oxidation, corrosion resistant.
- Air gauge with quick coupling and pressure release button, pressure gauge with two test pressures: 0-300psi, 0-20bar

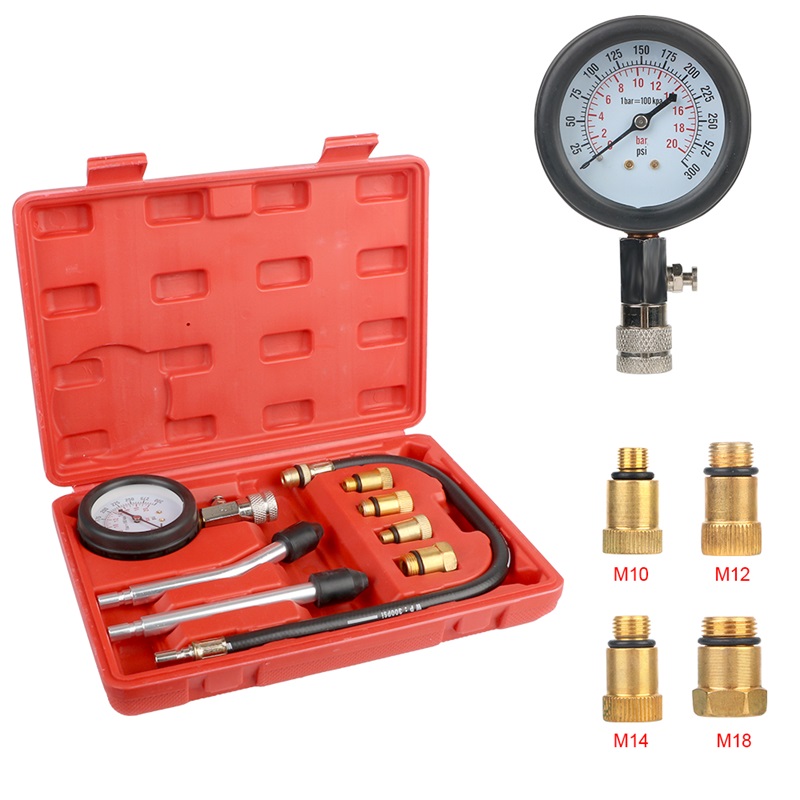

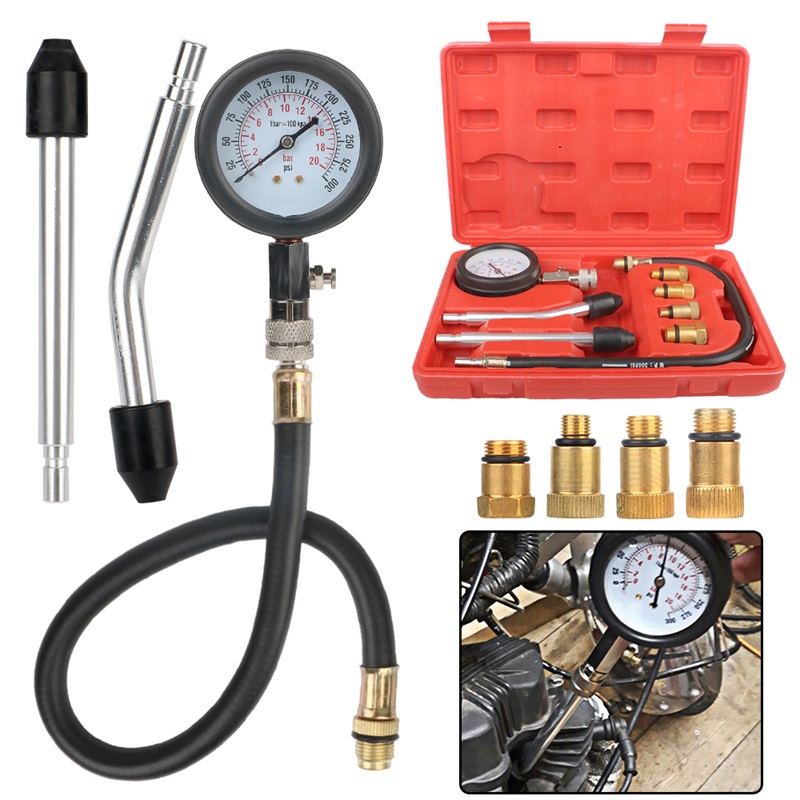

- Includes 4 adapters: m10*1.0mm, m12*1.25mm, m14*1.25mm, m18*1.5mm

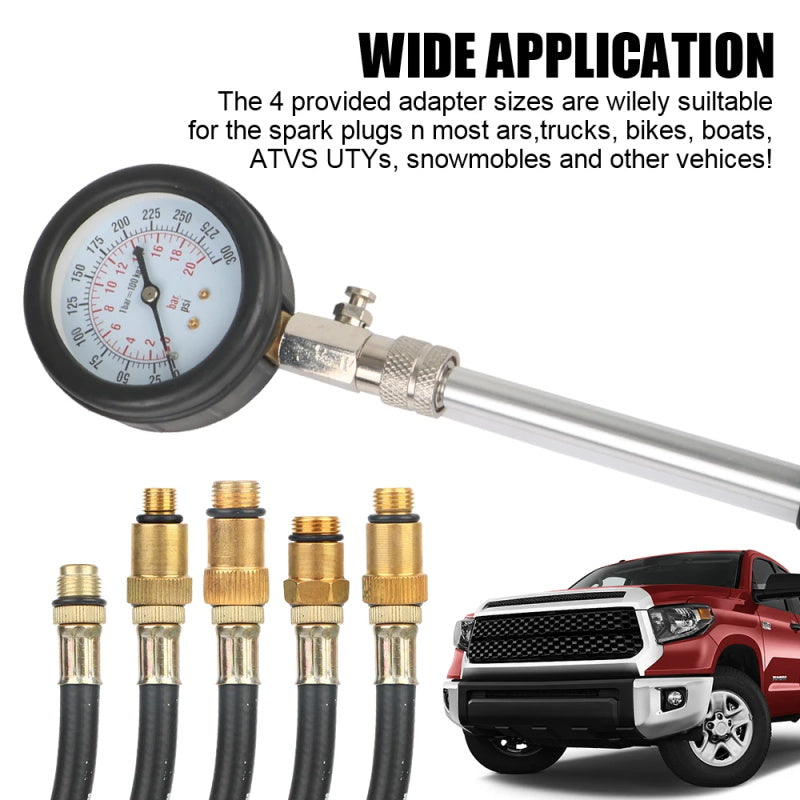

- M10 adapter for motorcycles, m12, m14, m18 adapters for motor vehicles

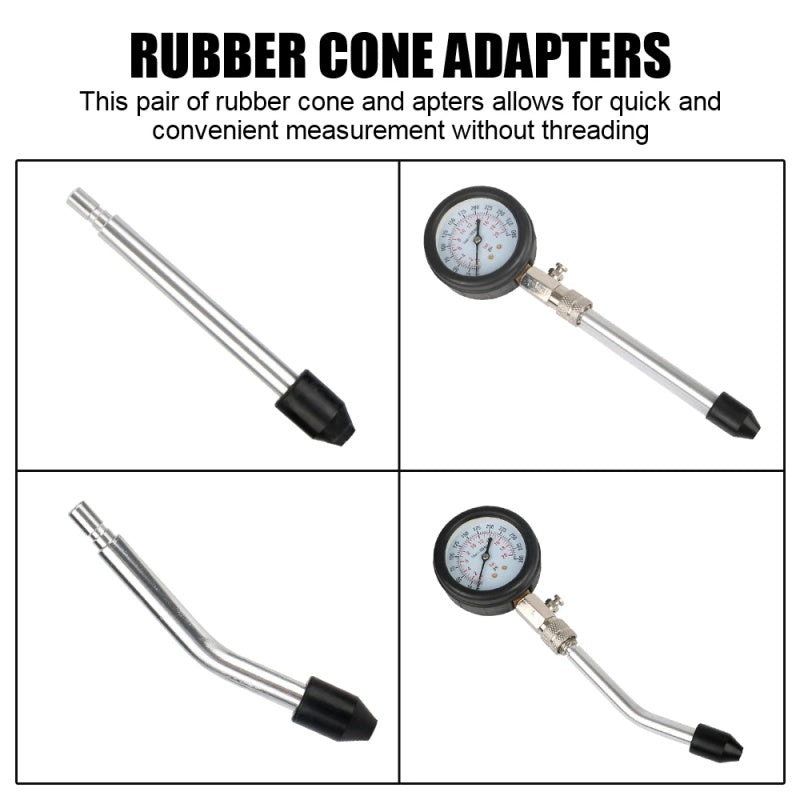

- Includes 2 hoses: crankshaft type and transverse axis type, both with rubber cone cap, and can test compression on almost any engine.

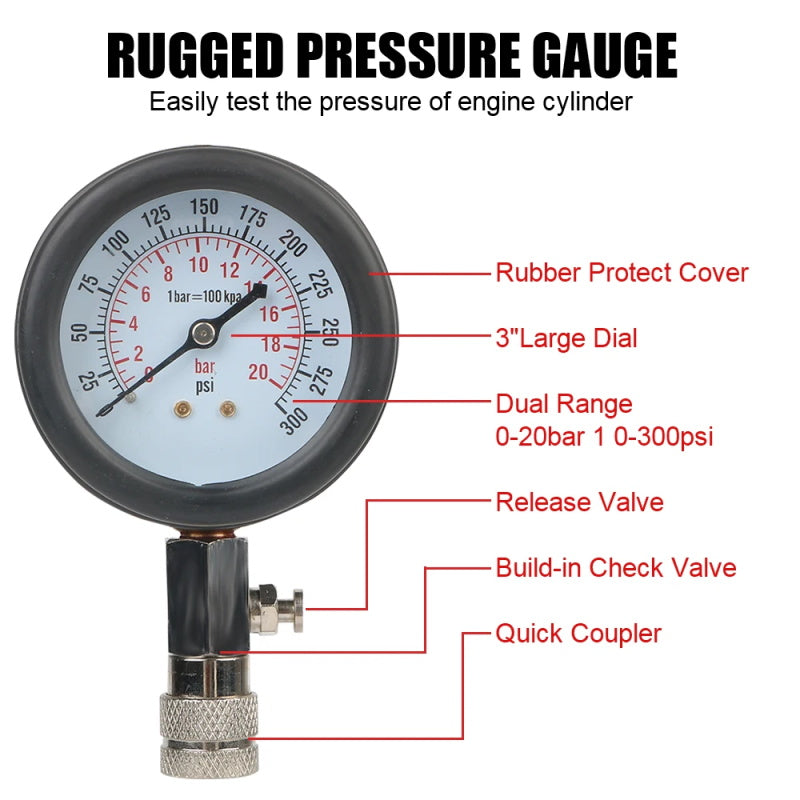

- Easily readable instrument panel with two units (0-300 psi, 0-21 kg/cm²). Acrylic glass gauge cover with scratch-resistant coating and rubber protective cover for excellent shock absorption performance.

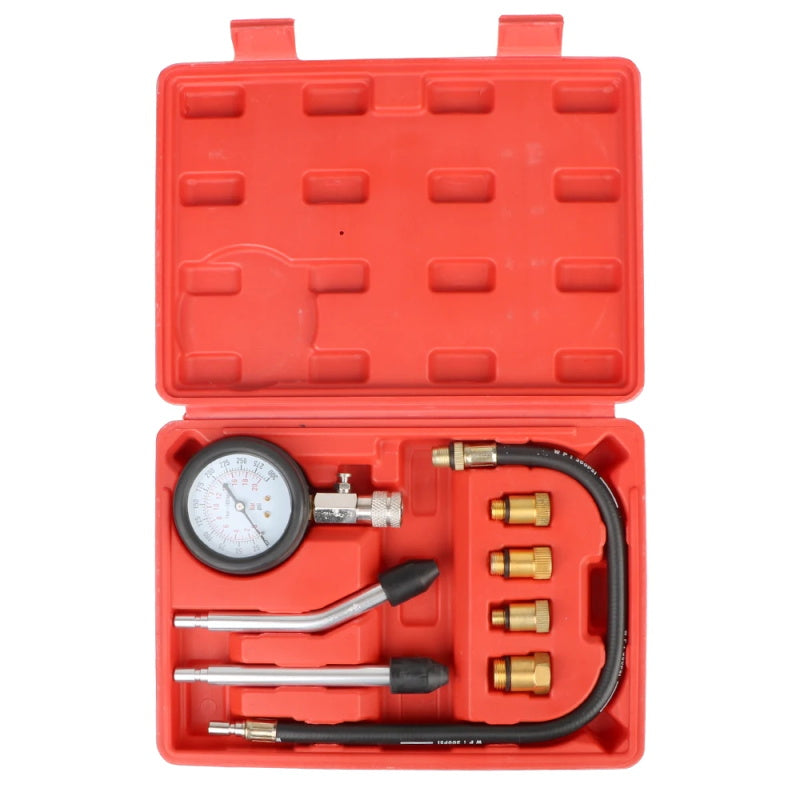

- Multi-size adapters (straight, angled, and male fittings) for compatibility with a wide range of vehicles. All components are protected in an ABS carrying case for easy organization and transport.
- You can obtain accurate readings for valve, piston ring, cylinder bore, or head gasket.
Specifications
- Case color: red
- Material: Copper
- Dual readings: 0-300 psi, 0-20 bar (1 bar = 100 kPa)
- Test unit/mode: bar, psi
- Special function: Obtaining accurate readings
- Adapter thread size: m10 x 1.0mm, m12 x 1.25mm, m14 x 1.25mm, m18 x 1.5mm

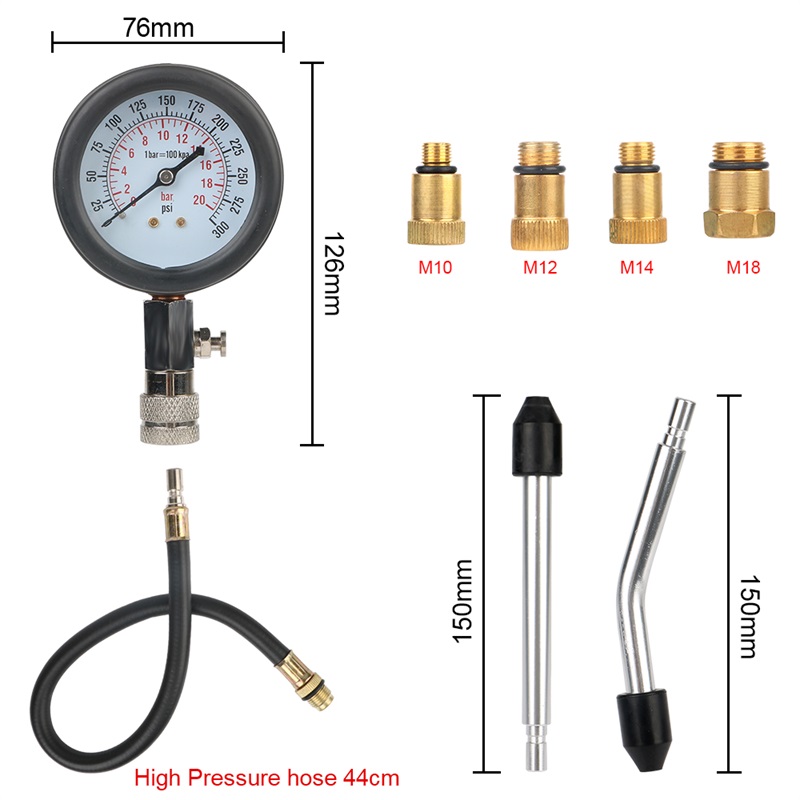

- Hose total length: 17.32" / 440mm
- Straight pressure hose length: 5.91" / 150mm
- Angled pressure hose length: 6.30" / 160mm

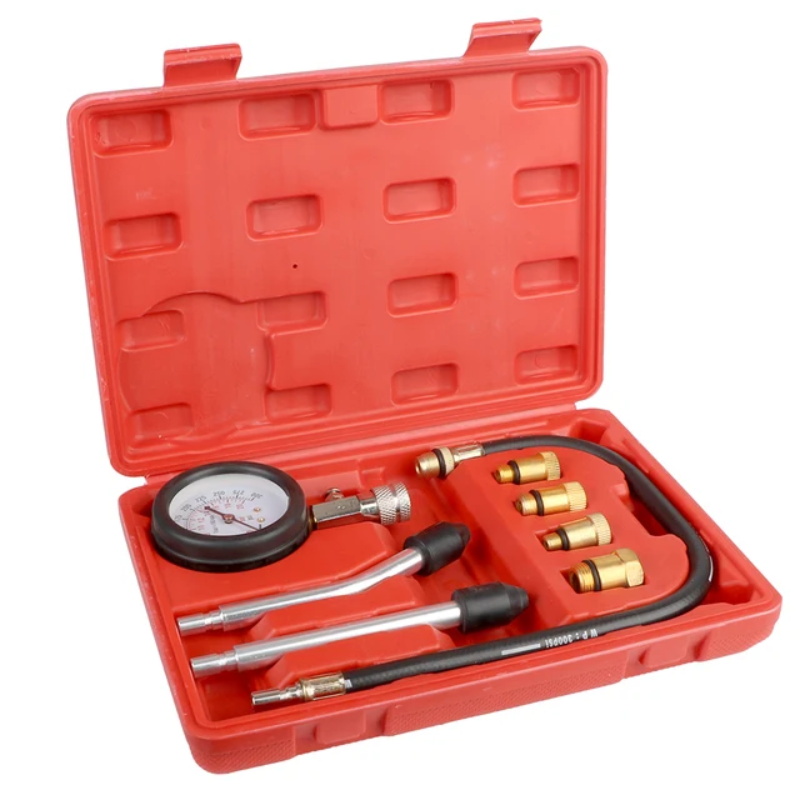

Package contents
- 1 x Gasoline compression tester
- 1 x m18 x 1.5mm adapter
- 1 x m14 x 1.25mm adapter
- 1 x m12 x 1.25mm adapter
- 1 x m10 x 1.0mm adapter
- 1 x angled pressure hose
- 1 x straight pressure hose
- 1 x hose
- 1 x storage case
Note
Please check before purchase whether the product is suitable for your application, vehicle model, and workshop requirements.
