Product Overview
The MSW HRH-680 hydraulic maneuvering aid, max. 680 kg/piece, maneuvering dolly, max. tire width 30 cm, maneuvering jack is a workshop product for professional applications in garages, workshops, and vehicle service.
Key Features
- Hydraulic or pneumatic support
- Set version with multiple components
Technical Data & Product Details
Product Details
- MSW HRH-680 hydraulic maneuvering aid max. 680 kg/piece, maneuvering dolly max. tire width 30 cm, maneuvering jack
- Max. load capacity per piece up to 680 kg
- Smooth lifting with hydraulic foot pedal – adjustment range between 380 - 660 mm
- For tires with a width of up to 30 cm (12 inches)
- Safe design – pedal lock and safety bolt
- 4 swivel casters – allow easy movement in all directions
- Product Descriptions
- Easy work is now possible even in tight spaces

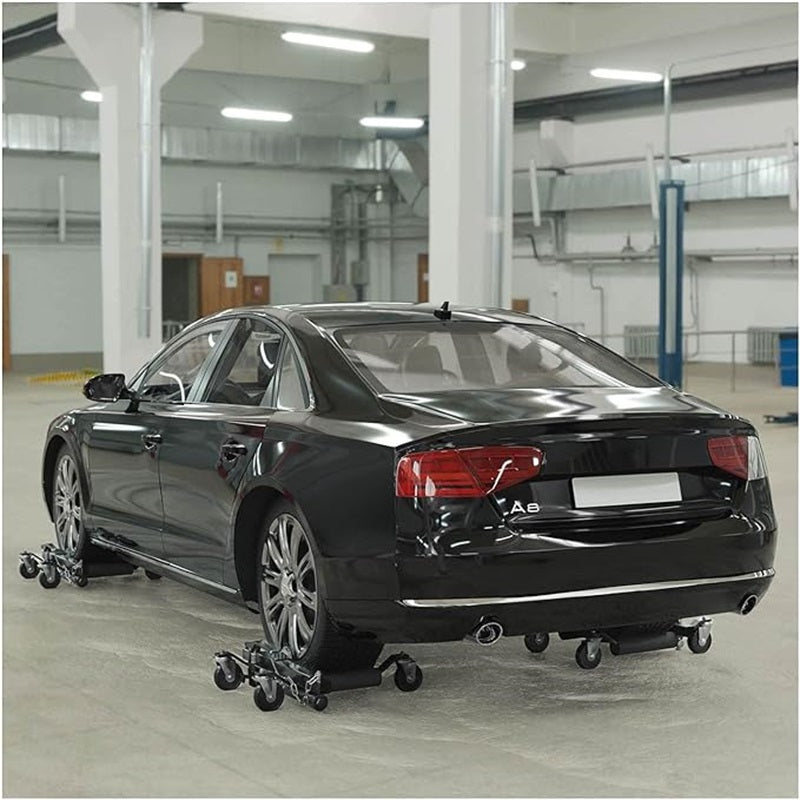

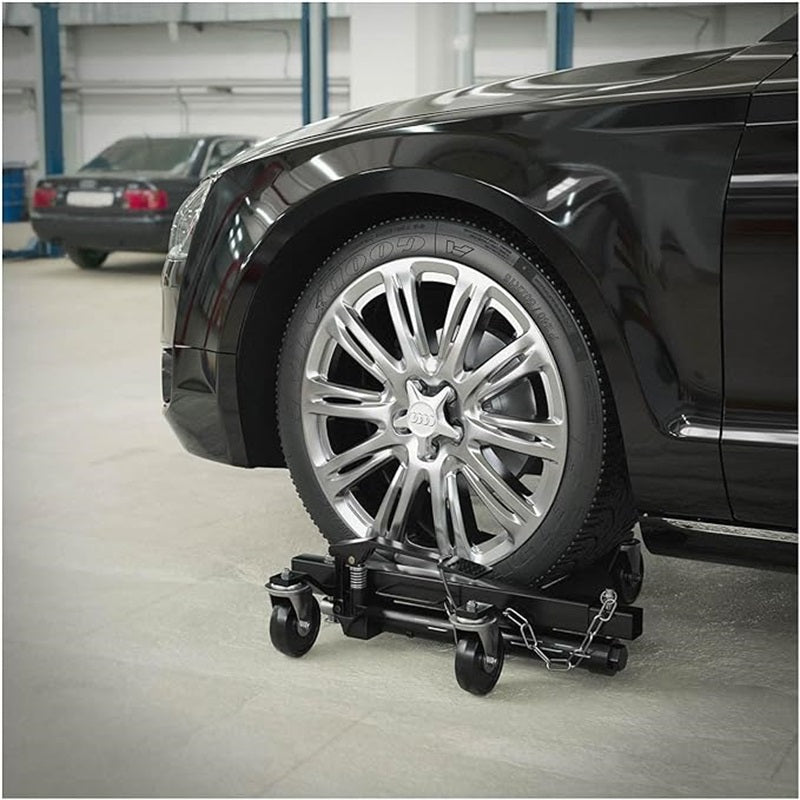

- With the hydraulic maneuvering aid MSW-HRH-680, vehicles can be lifted at the tires without much effort and thus easily maneuvered into any position. The set consists of two professional jacks and is designed for a tire width of 12 inches, corresponding to a width of 30 cm. The maneuvering dolly is used mainly in workshops, motorsports, or at car dealerships.

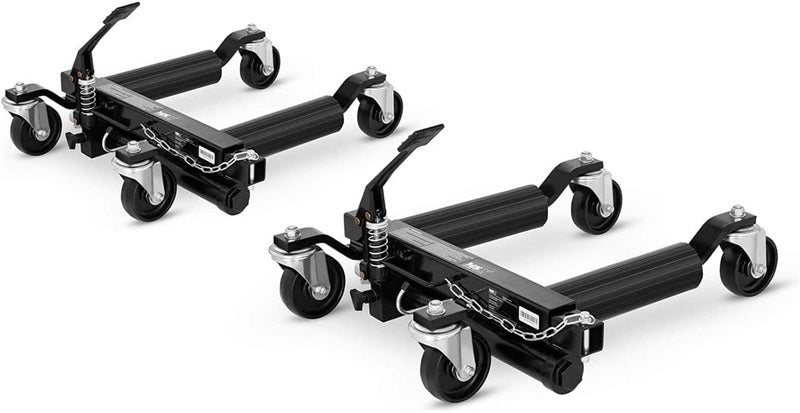

- The maneuvering aid from MSW was developed for effortless maneuvering of vehicles. Using the lifting tool, up to 680 kg can be lifted. Use four jacks at the same time, and even 2,720 kg can be moved. With the hydraulic foot pedal, the vehicle is gently pumped up until the selected wheel floats freely. The adjustment range is between 380 and 660 mm. This set contains two maneuvering aids.

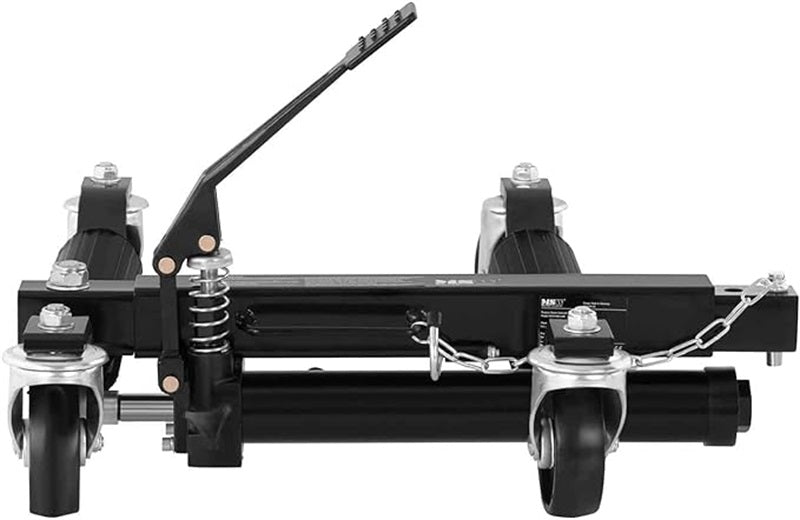

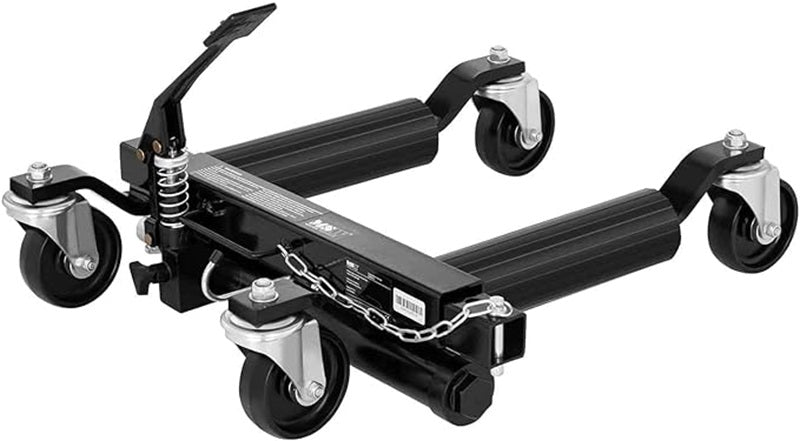

- The maneuvering aid has four ball-bearing swivel casters made of nylon. As a roll-away protection, a hook for pedal locking was installed. In addition, the jack has a safety bolt attached to the device with a chain. This prevents folding during operation. Furthermore, it has soft PVC pads that protect the tires when lifting.
- Technical Details
- Caster material: Nylon
- Housing material: Steel
- Number of pieces: 2
- Max. load capacity 680 kg / piece
- Max. tire width 30 cm
- Max. lifting height 280 mm
- Distance between receiving rollers 380 to 660 m
- Caster dimensions 101.5 x 33.8 mm
Scope of delivery
- Maneuvering aid MSW-HRH-680 (2 pieces), instruction manual
- Product information
- Manufacturer: MSW Motor Technics
- Brand: MSW Motor Technics
- Item weight: 35 Kilograms
- Product dimensions: 73 x 68 x 34.5 cm; 35 Kilograms
- Manufacturer reference: MSW-HRH-680
- Manufacturer's item number/serial number: MSW-HRH-680
Note
Please check before purchase whether the product is suitable for your application, your vehicle model, and your workshop requirements.
