Vehicle compatibility
Vehicle brand: Škoda, Audi
Vehicle model: Roomster, Fabia, Octavia, Yeti, Superb, A1, A4L, A3
No model years given
Product details and technical specifications

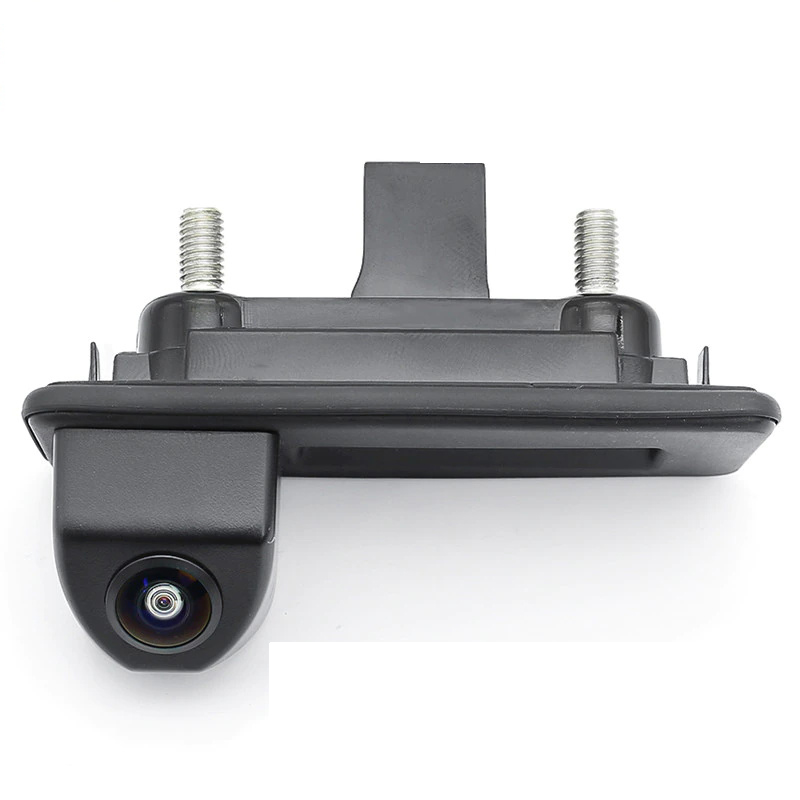

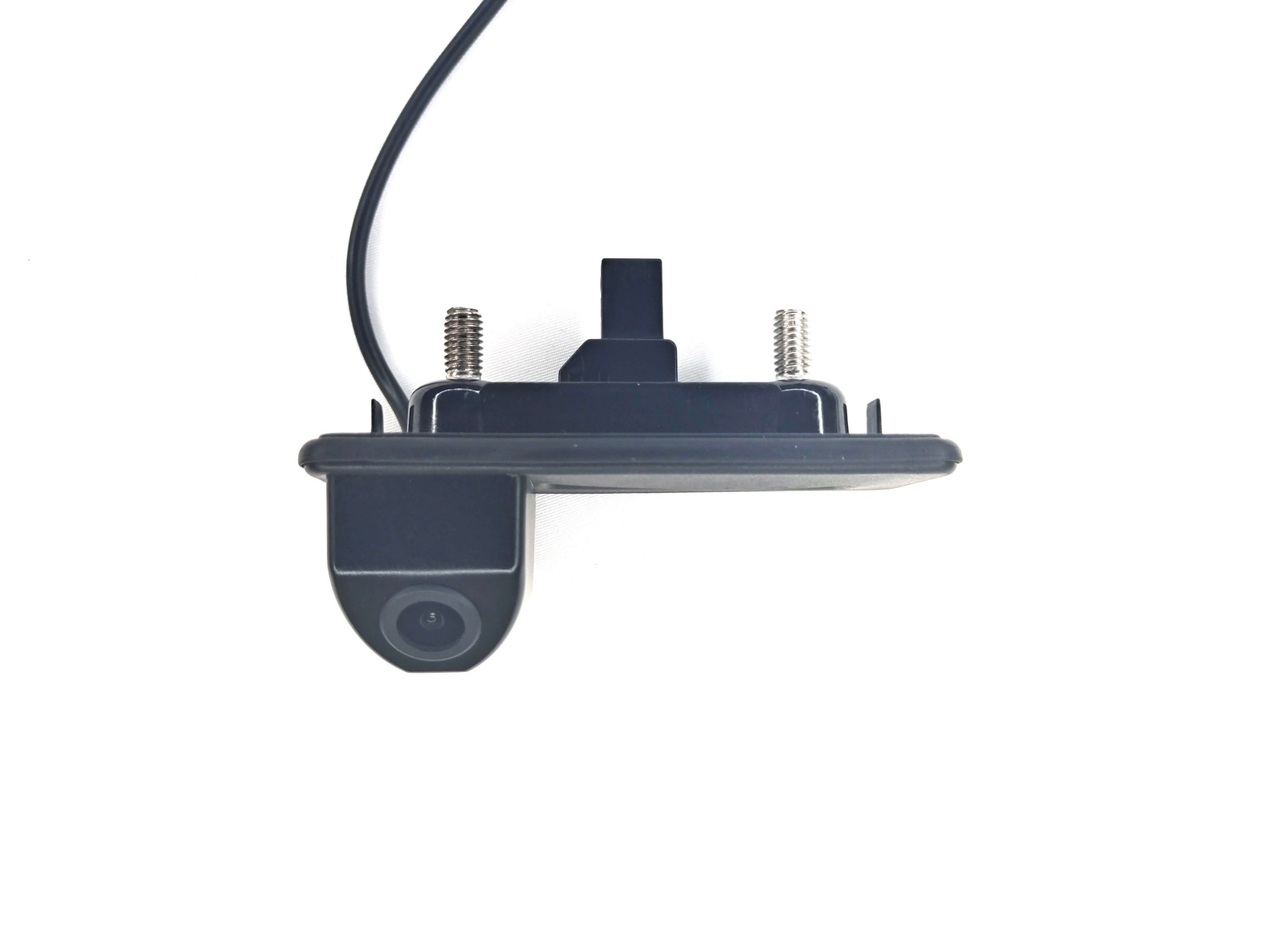

- 170° rear view camera for Škoda Roomster, Fabia, Octavia, Yeti, Superb and Audi A1, A4L, A3
- For Škoda Roomster, Fabia, Octavia, Yeti, Superb
- For Audi A1, A4L, A3
- • No CANBUS or OBD interface needed. The camera has a built-in reversing guide module. Simply connect the power supply.

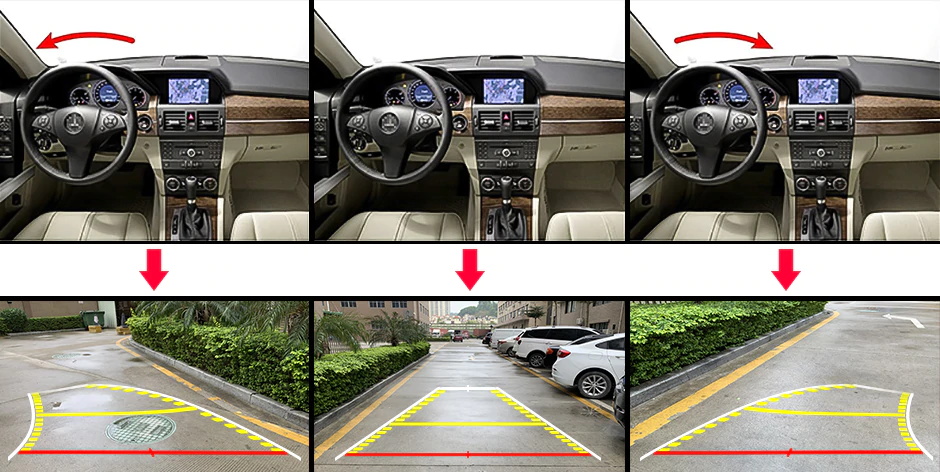

- • The guide line automatically adjusts according to the vehicle body's movement position and speed as well as the angle, making parking easier.
- • 170° viewing angle
- • Waterproof
- Package list
- 1. Rear view camera
- 2. Box
- 3. Video cable (6 m)
- 4. Power cable
- Tip: You need to connect the 6 m cable with the red trigger wire "A" and "B".
- Connect "A" to the reverse light (power DC 12V +).
- Connect "B" to the trigger wire of the radio.
- Certification: CER
- Certification: RoHS
- Origin: CN
- Guide line: Yes
- Material type: ABS
- Video cable length: 6 m
- Lens material: Glass
- Connection type: Cable
- Warning type: Carrier auxiliary cameras
- Warning type: Accessories
- Warning type: Rear
- Housing material: Plastic
- Viewing angle: 170 degrees
- Night vision: Top Starlight night vision
- Waterproof: Yes
- Power supply: DC 12V
